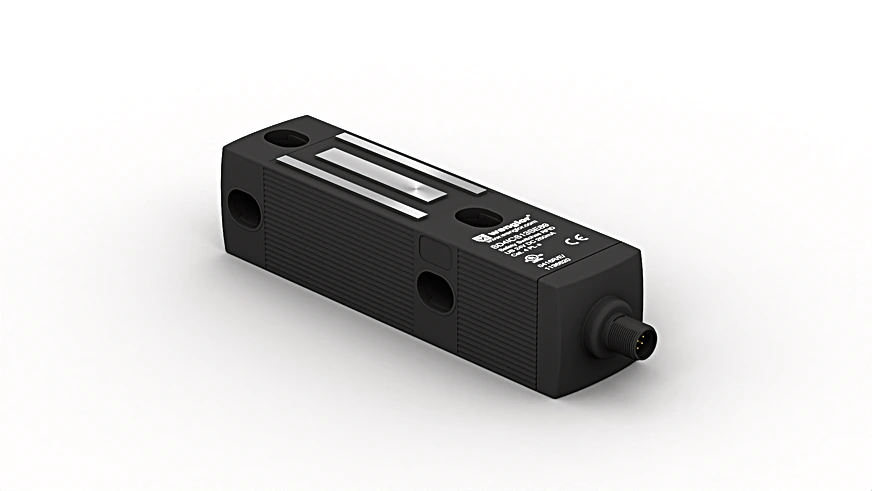

Wenglor SD4ICS04SE89 Guard Locking Device Electromagnetic, Power to Lock Principle

Guard Locking Device Electromagnetic, Power to Lock Principle.

$545.00
Part Number
  • SD4ICS04SE89
Highlights...

Features

  • 500 N locking force (monitored)
  • Easy to clean
  • Extensive diagnosis
  • Adjustable locking force
  • Sensor Type: Locking unit
  • Response Time: < 150 ms
  • Risk time: < 150 ms
  • Temperature Range: -13°F to 131°F
  • Storage temperature: -13°F to 185°F
  • Safety Output: OSSD
  • Number of safety outputs (OSSDs): 2
  • PNP Safety Output/Switching Current: < 250 mA
  • Number of Signal Outputs: 1
  • PNP signal output switching current: < 50 mA
  • Short Circuit Protection: yes
  • Protection Class: II
  • Housing Material: Plastic
  • Degree of Protection: IP67

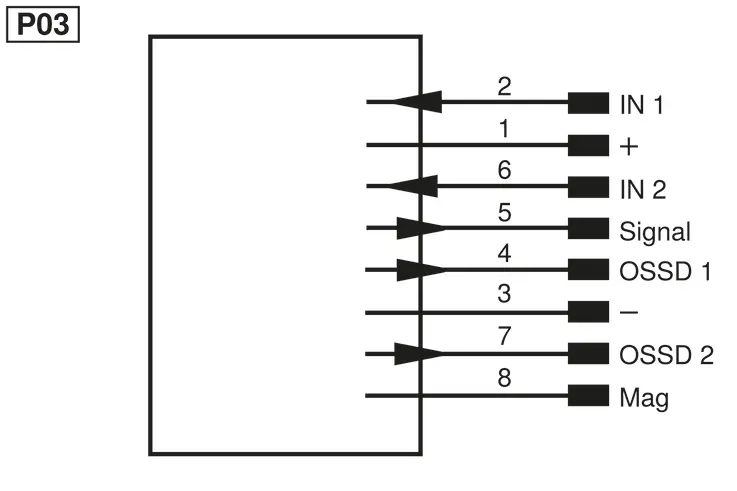

  • Connection: M12 × 1; 8-pin
  • Latching Force, typical: 45 to 115 N
  • Weight: 745 g
  • Operating principle: Inductively coded
  • Coding: Standard
  • Performance Level (EN ISO 13849-1): Cat. 4 PL e
  • PFHD: 3,50 × E-9 1/h
  • Safety Integrity Level (EN 61508): SIL 3
  • Safety Integrity Level (EN 62061): SILCL 3
  • PDDB (EN 60947-5-3): yes
  • Locking Device: Power to lock principle
  • Locking Force F, guaranteed: 500 N
  • Locking Force Fmax, typical: 750 N
  • Series Connection: yes
  • Monitored lock: yes
  • Permanent magnet: yes
  • Electrical Detent Mechanism: yes
  • Complementary Products: Safety Relay SR4B3B01S, SR4D3B01S, Adjusting Target Z0048, Software
This innovative guard locking device is suitable for process safety thanks to the constantly monitored locking force. Also, the safety level cat. 4 PL e (EN ISO 13849-1) can be achieved with just one guard locking device and is retained even during series connection. Response and risk times remain unchanged during series connection. Extensive diagnosis functions boost system availability and make installation and maintenance easier. Thanks to the electrical locking, no touching components whatsoever are used and therefore wear, the guard door clattering (and rattling) loudly and laborious cleaning work are avoided.
