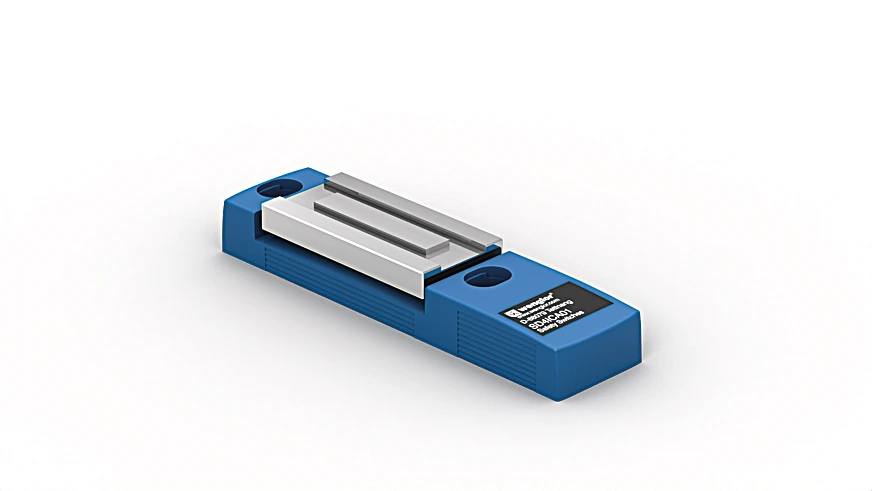

Wenglor SD4ICA01 Guard Locking Device Actuator

Guard Locking Device Actuator.

$87.60
Part Number
  • SD4ICA01
Highlights...

Features

  • 500 N locking force (monitored)
  • Easy to clean
  • Sensor Type: Actuator
  • Temperature Range: -13°F to 131°F
  • Storage temperature: -13°F to 185°F
  • Housing Material: Plastic
  • Degree of Protection: IP67
  • Weight: 467 g
  • Operating principle: Inductively coded
  • Complementary Products: Software
This innovative guard locking device is suitable for process safety thanks to the constantly monitored locking force. Also, the safety level cat. 4 PL e (EN ISO 13849-1) can be achieved with just one guard locking device and is retained even during series connection. Response and risk times remain unchanged during series connection. Extensive diagnosis functions boost system availability and make installation and maintenance easier. Thanks to the electrical locking, no touching components whatsoever are used and therefore wear, the guard door clattering (and rattling) loudly and laborious cleaning work are avoided.
