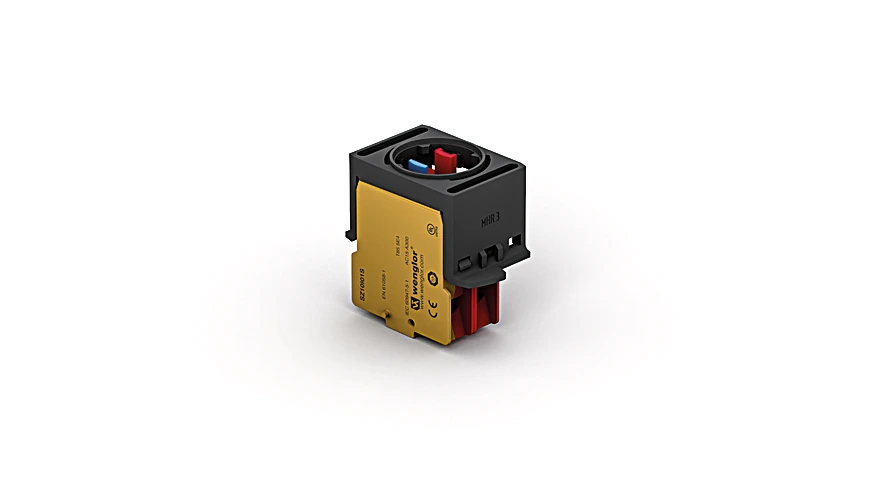

Wenglor SC20I01S Emergency Stop Switch Contact Block

Emergency Stop Switch Contact Block.

$28.50
Part Number
  • SC20I01S
Highlights...

Features

  • Narrow installation width
  • Integrated defect protection
  • Temperature Range: -22°F to 185°F
  • Storage temperature: -58°F to 185°F
  • Protective Insulation, Rated Voltage: 250 V
  • Contact material: Metal, AgNi
  • Service Life (Switching Cycle): 20000
  • Bounce time: < 10 ms
  • Connection: Screw-type connection
  • Clampable Wire Cross-Section: 2.5 mm²
  • Weight: 34 g
  • B10d Switching Cycles: 104 000
  • Number of positively driven contacts: 2
  • Packaging unit: 1 Piece
  • Scope of delivery: 1 × contact block
  • Fault Protection: yes
  • Complementary Products: Safety Relay SR4B3B01S, SR4D3B01S, Software
Contact blocks are suitable for applications up to PL e per EN ISO 13849-1 and up to SIL CL 3 per EN 62061.
