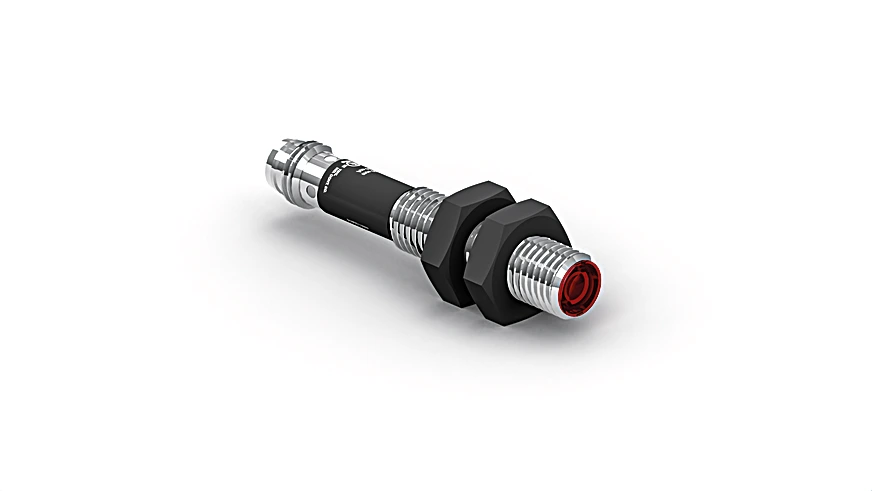

Wenglor SB777 Through-Beam Sensor

Features

• Ample performance reserves
• Test input
• Insensitive to contamination
• Infrared light
• Range: 1,500 mm
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Risk Group (EN 62471): 1
• Opening Angle: 20 °
• Sensor Type: Emitter
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 25 mA
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V2A (1.4305/303)
• Full Encapsulation: yes
• Degree of Protection: IP67

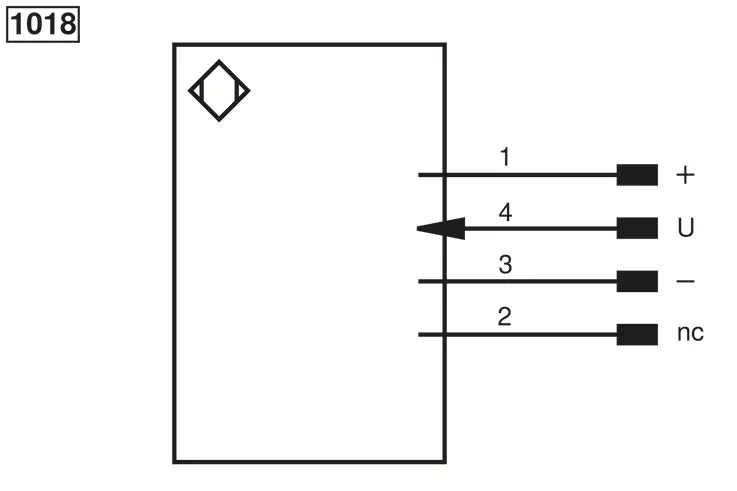

• Connection: M8 × 1; 4-pin
• Weight: 5 g
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M8-E002 hex nut, 1 × sensor
