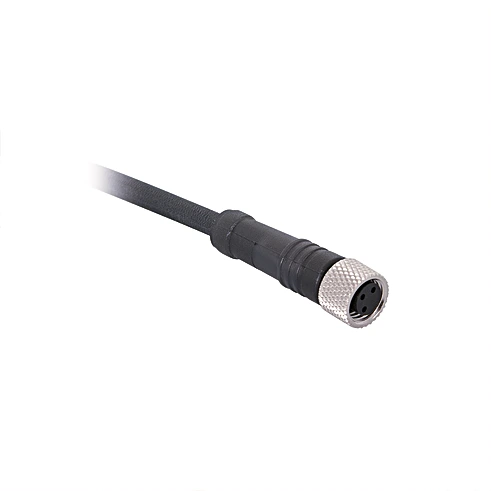

Wenglor S49-2M Connection Line M8 × 1; 3-pin

Connection Line M8 × 1; 3-pin.

$20.10
Part Number
  • S49-2M
Highlights...

Features

  • Straight
  • Supply Voltage: ≤ 63 V AC/DC
  • Connection 1: Socket, straight

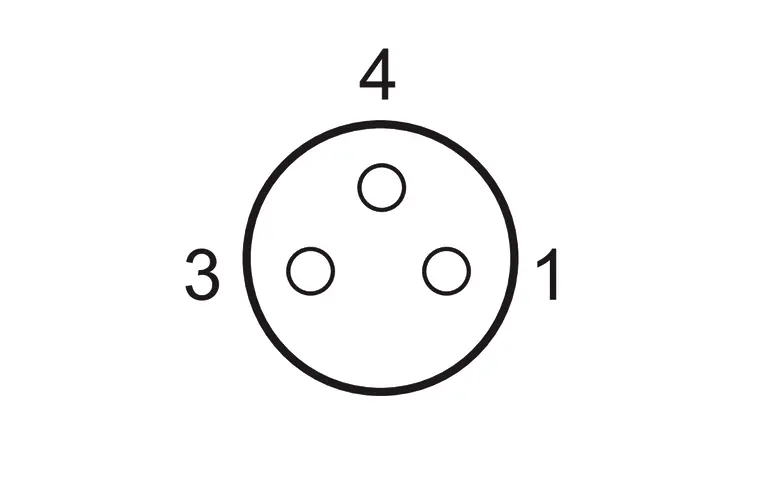

  • Connection mode 1: M8 × 1, 3-pin
  • Connection 2: stripped
  • Torque: M8: 0,3 Nm
  • Cable length (L): 2 m
  • Outer diameter (d): 5 mm
  • Wire cross-section: 0.34 mm²
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 176°F
  • Cable Jacket Material: Plastic, PVC
  • Material Wire Insulation: Plastic, PVC
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 77 g
  • Scope of delivery: 1 × line
  • Packaging unit: 1 Piece
