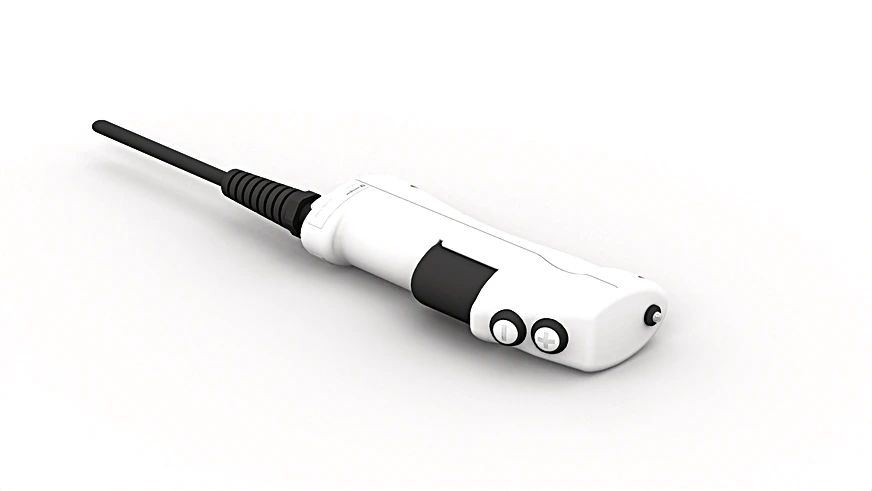

Wenglor S2DF002 Enabling Switch

Enabling Switch.

$555.00
Part Number
  • S2DF002
Highlights...

Features

  • One-hand operation thanks to ergonomic design
  • Rubberized enabling switch
  • Feedback (vibration signal and LED) upon approval
  • Temperature Range: 23°F to 140°F
  • Housing Material: Plastic
  • Service Life (Switching Cycles): 1000000
  • Degree of Protection: IP54

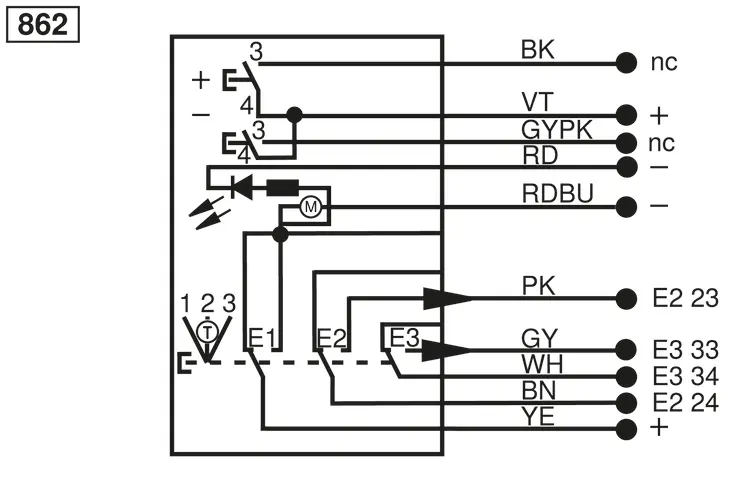

  • Connection: Cable; 10-wire
  • Cable length (L): 5 m
  • Weight: 703 g
  • B10d Switching Cycles: 100 000
  • Number of NO: 2
  • Scope of delivery: 1 × quick start, 1 × enabling switch
  • 3-stage: yes
  • Additional keys: + / - key
  • Vibration signal: yes
  • Switching Status Indicator: yes
  • Complementary Products: Safety Relay SR4B3B01S, SR4D3B01S, Software
The 3-stage enabling switch is very well suited to extensive commissioning or service work thanks to the special design. The ergonomic design prevents fatigue and makes work easier.
