Wenglor S23S752-5M Connection Cable M12 × 1; 8-pin - SUB D; 9-pin
Connection Cable M12 × 1; 8-pin - SUB D; 9-pin.
$79.40
Part Number
- S23S752-5M
Highlights...
- S23S752-5M
- By Wenglor
- FREE Shipping on orders of $2,000 or more
Overview
Features
- Screened
- Connection 1: Socket, straight
- Connection mode 1: M12 × 1, 4-pin
- Connection 2: Plug, straight
- Connection mode 2: SUB D, 9-pin
- Coding: A-coding
- Cable length (L): 5 m
- Outer diameter (d): 4.8 mm
- Wire cross-section: 0.25 mm²
- Cable Jacket Material: Plastic, PVC
- Material Wire Insulation: Plastic, PVC
- Material Sleeve Nut: Brass, nickel-plated
- Screened: yes
- Weight: 224 g
- Scope of delivery: 1 × line
- Packaging unit: 1 Piece
Documents
Spec Sheets
Other

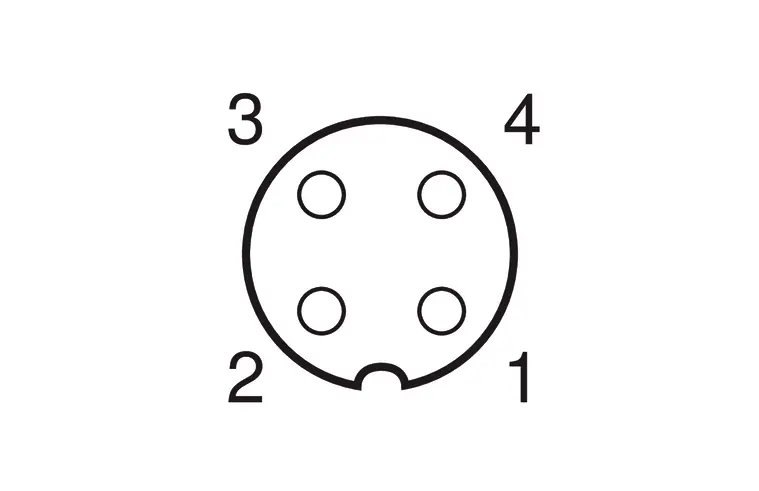

- Wenglor S23S752-5M Connection Cable M12 × 1; 8-pin - SUB D; 9-pin Pin assignment-1 (82 KB)

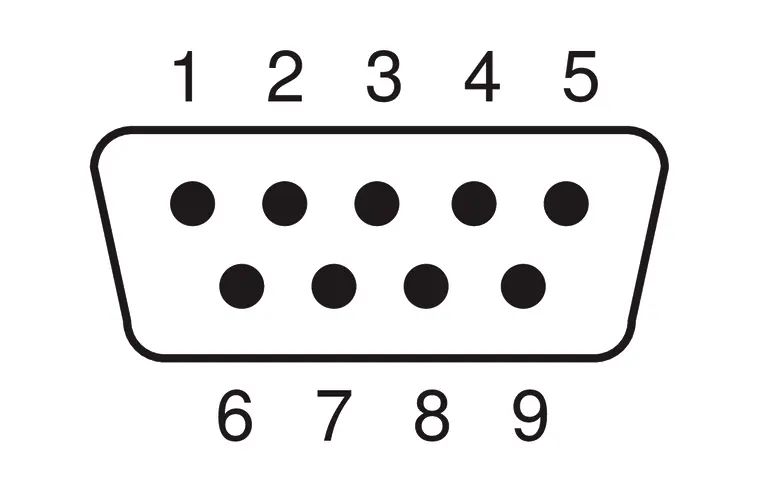

- Wenglor S23S752-5M Connection Cable M12 × 1; 8-pin - SUB D; 9-pin Pin assignment-2 (83 KB)

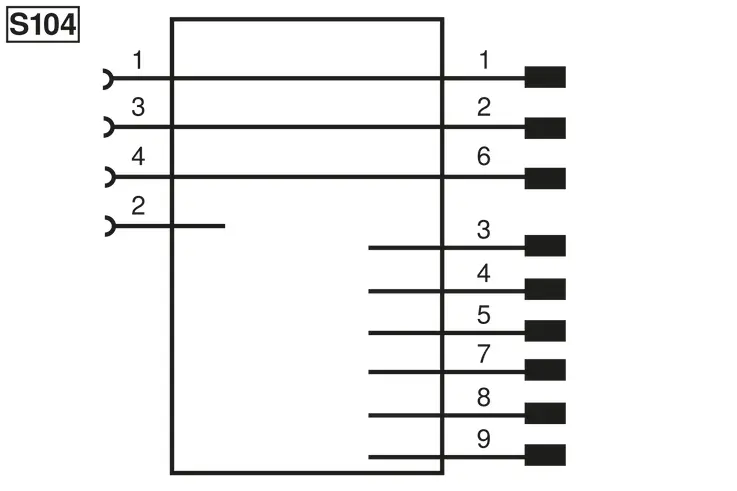

- Wenglor S23S752-5M Connection Cable M12 × 1; 8-pin - SUB D; 9-pin Connection Diagram-1 (28 KB)
- Wenglor S23S752-5M Connection Cable M12 × 1; 8-pin - SUB D; 9-pin Connection Diagram-2 (38 KB)
