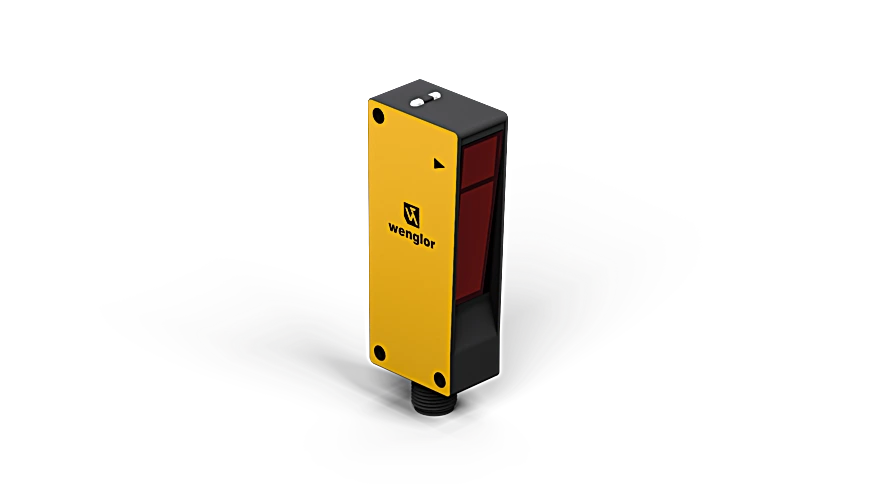

Wenglor S1NS003 Safety Through-Beam Sensor Emitter

Safety Through-Beam Sensor Emitter.

$190.00
Part Number
  • S1NS003
Highlights...

Features

  • Compatible with safety control unit
  • Quick alignment through visible red light
  • Test input
  • Range: 0.25 to 25 m
  • Light Source: Red Light
  • Wavelength: 660 nm
  • Opening Angle: ± 5 °
  • Sensor Type: Emitter
  • Supply Voltage: 19.2 to 28.8 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Temperature Range: -22°F to 140°F
  • Storage temperature: -22°F to 158°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Plastic, ABS
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP65, IP67

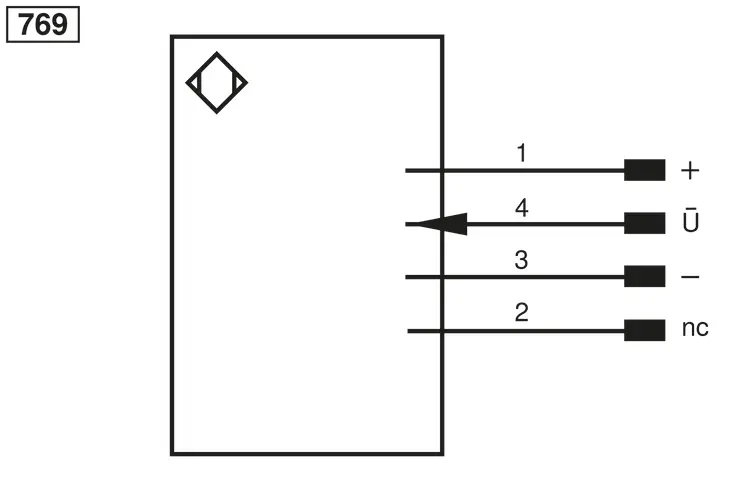

  • Connection: M12 × 1; 4-pin
  • Weight: 27 g
  • ESPE Type (EN 61496): 2
  • Safety Category (EN ISO 13849-1): 2
  • Performance Level (EN ISO 13849-1): PL c
  • Mission Time TM (EN ISO 13849-1): 20 a
  • MTTFd (EN ISO 13849-1): 381 a
  • Scope of delivery: 1 × sensor
  • Complementary Products: Set Protective Housing Z1NS001, Software, Path-Folding Mirror Z2UG001
These through-beam sensors are well suited for use in rough industrial environments. Together with a suitable individual control unit, access of machines can be safeguarded.
