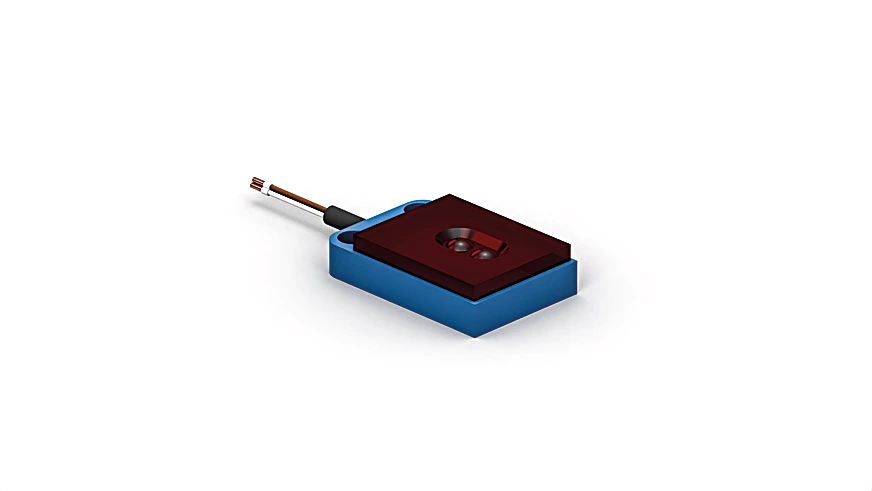

Wenglor S1FL66 Through-Beam Sensor

Features

• Rear panel mounting
• Test input
• Range: 1,000 mm
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Opening Angle: 25 °
• Sensor Type: Emitter
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Reverse Polarity Protection: yes
• Test input: PNP
• Protection Class: III
• Housing Material: Plastic, ABS-GF
• Degree of Protection: IP67

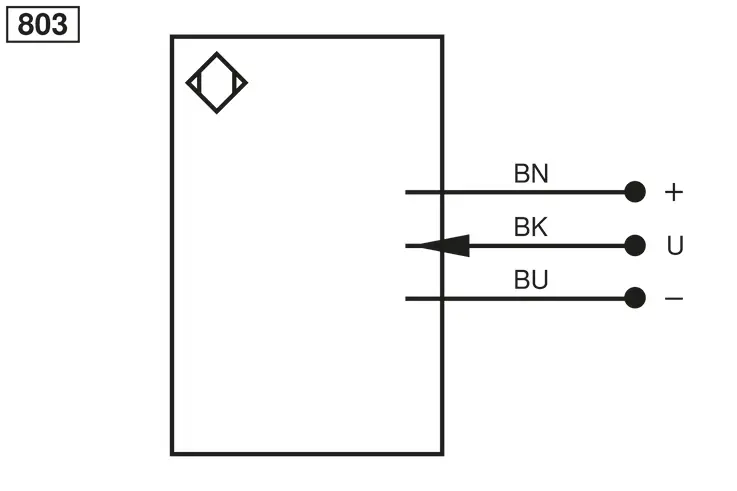

• Connection: Cable; 3-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Wire cross-section: 0.09 mm²
• Weight: 21 g
• MTTFd (EN ISO 13849-1): 6,531.61 a
• Scope of delivery: 1 × BEF-SET-23 mounting set, 1 × initial start-up instructions, 1 × sensor
