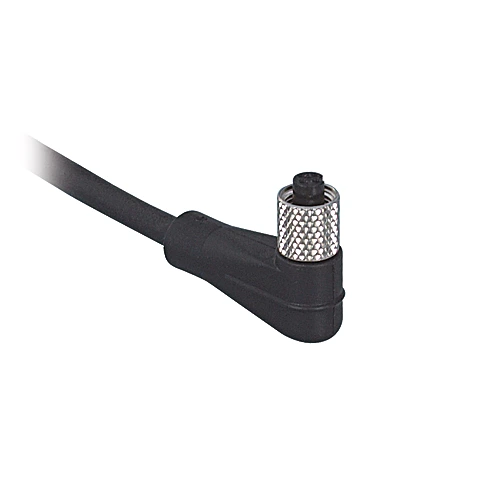

Wenglor S13W-2M Connection Line M5 × 0,5; 3-pin

Features

• PUR, angled
• Supply Voltage: ≤ 125 V DC/AC
• Connection 1: Socket, angled
• Connection mode 1: M5 × 0,5; 3-pin
• Connection 2: stripped
• Torque: M5: 0,3 Nm
• Cable length (L): 2 m
• Outer diameter (d): 3 mm
• Wire cross-section: 0.14 mm²
• Degree of Protection: IP67
• Temperature range (fixed installation): 5°F to 176°F
• Temperature range (moving application): 23°F to 176°F
• Cable Jacket Material: Plastic, PUR
• Material Wire Insulation: Plastic, PVC
• Material Sleeve Nut: Brass, nickel-plated
• Weight: 28 g
• Scope of delivery: 1 × line
• Packaging unit: 1 Piece
