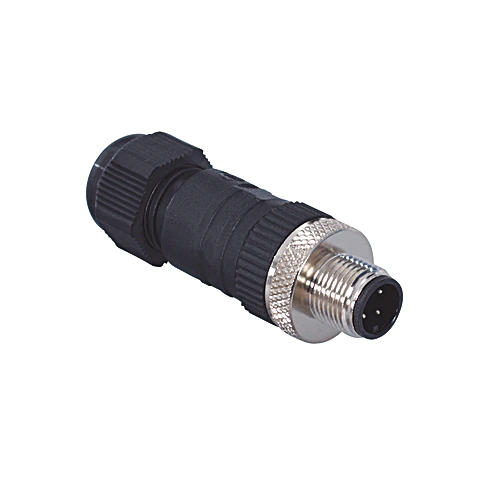

Wenglor S03G Connector Plug M12 × 1; 4-pin

Connector Plug M12 × 1; 4-pin.

$22.90
Part Number
  • S03G
Highlights...

Features

  • Plug M12 × 1, straight
  • Connection 1: Plug, straight

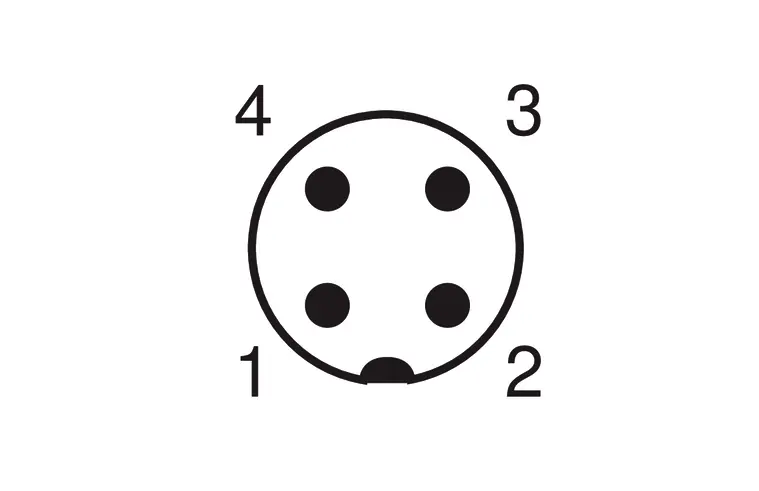

  • Connection mode 1: M12 × 1, 4-pin
  • Torque: M12: 0,6 Nm
  • Coding: A-coding
  • Outer diameter (d): 4 to 8 mm
  • Wire cross-section: ≤ 1.5 mm²
  • Assembling: Screw Terminal Technology
  • Degree of Protection: IP67
  • Temperature Range: -13°F to 194°F
  • Material Sleeve Nut: Brass, nickel-plated
  • Weight: 29 g
  • Scope of delivery: 1 × connector plug
  • Packaging unit: 1 Piece
