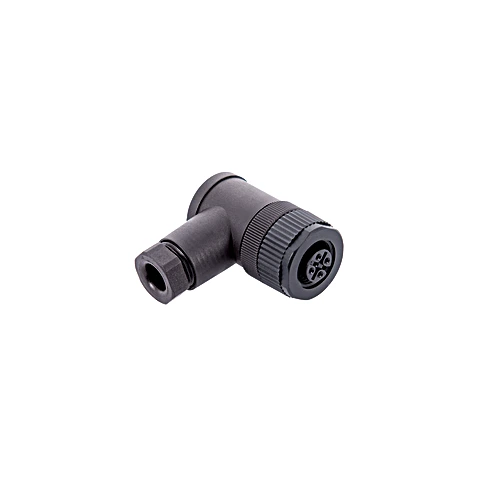

Wenglor S02 Connection Socket M12 × 1; 4-pin

Connection Socket M12 × 1; 4-pin.

$16.00
Part Number
  • S02
Highlights...

Features

  • Socket M12 × 1, angled
  • Connection 1: Socket, angled

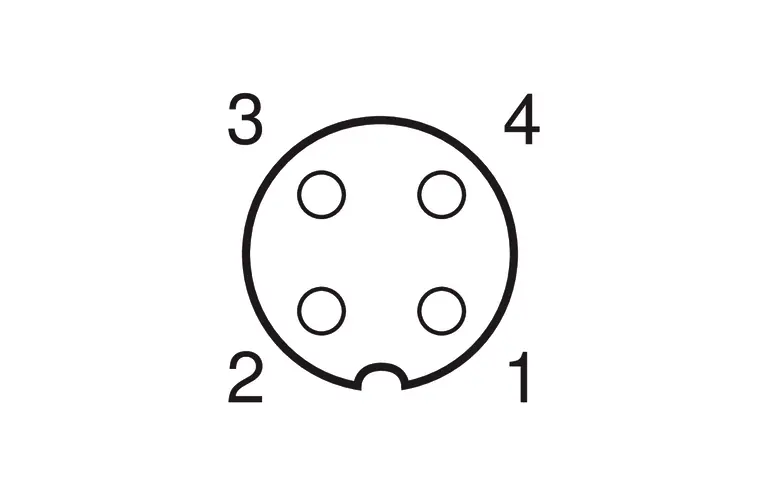

  • Connection mode 1: M12 × 1, 4-pin
  • Torque: M12: 0,4 Nm
  • Coding: A-coding
  • Outer diameter (d): 4 to 6 mm
  • Wire cross-section: 0.75 mm²
  • Assembling: Screw Terminal Technology
  • Degree of Protection: IP67
  • Temperature Range: -40°F to 185°F
  • Material Sleeve Nut: Plastic, PA
  • Weight: 17 g
  • Scope of delivery: 1 × connection socket
  • Packaging unit: 1 Piece
