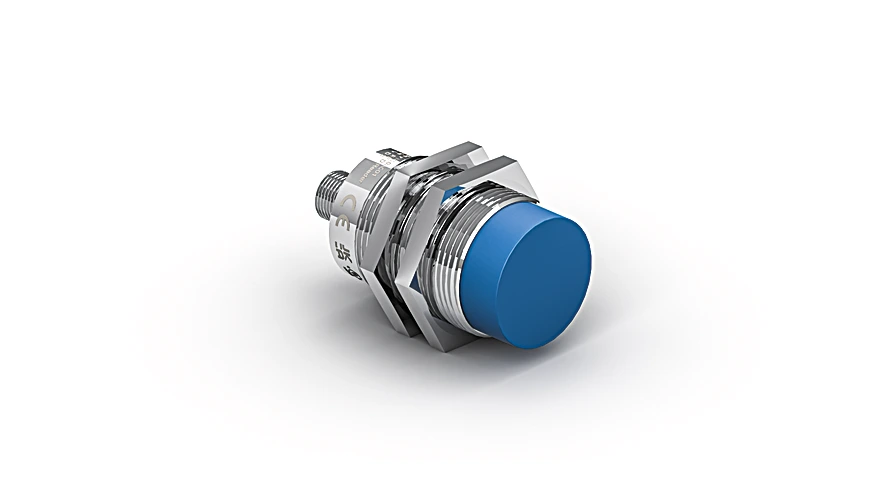

Wenglor R30A001 Industrial RFID Reader with IO-Link

Industrial RFID Reader with IO-Link.

$342.00
Part Number
  • R30A001
Highlights...

Features

  • Frequency band 13.56 MHz
  • Resistant to high temperature
  • Data can be read, compared and written
  • Ready for Industry 4.0 with IO-Link 1.1
  • 360° visible switching status display
  • Working Range: 0 to 50 mm*
  • Frequency band: 13.56 MHz
  • Mounting: Non-flush

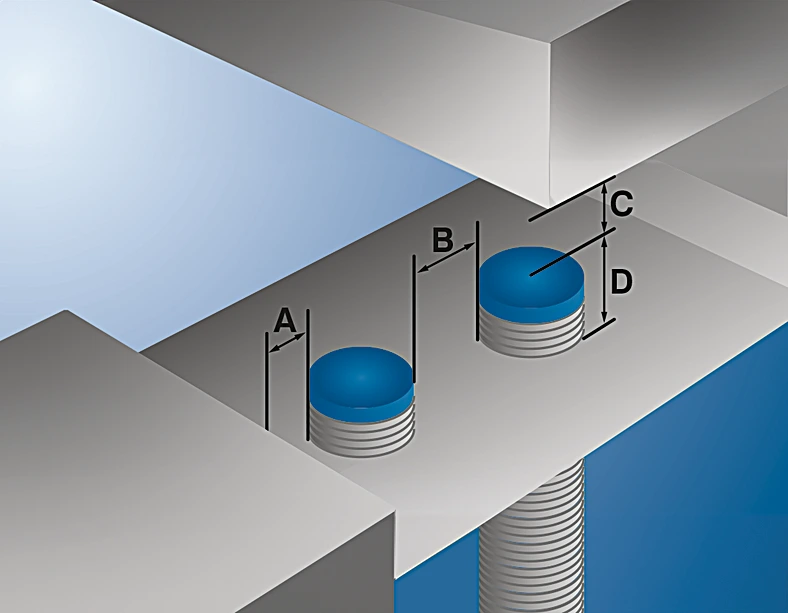

  • Mounting A/B/C/D in mm: 30/60/90/10
  • RFID standard: ISO/IEC 15693
  • Supply Voltage with IO-Link: 18 to 32 V DC
  • Supply Voltage: 11 to 32 V DC
  • Current Consumption (Ub = 24 V): ≤ 50 mA
  • Temperature Range: -13°F to 176°F
  • Storage temperature: -13°F to 176°F
  • Number of Switching Outputs: 2
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link Version: 1.1
  • Protection Class: III
  • Housing Material: Brass, chrome-plated
  • Sensing face: Plastic, PBT
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 84 g
  • MTTFd (EN ISO 13849-1): 644 a
  • Error Indicator: yes
  • IO-Link: yes
  • PNP NO: yes
  • Output: PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Alarm mode, RSSI value
  • Complementary Products: IO-Link Master, Software
Thanks to RFID technology, these RFID readers enable fast and seamless data exchange with RFID transponders. The IO-Link interface makes it easy to change parameters and transfer process data efficiently. With a frequency band of 13.56 MHz, RFID readers offer a reliable identification solution for close-range applications.
