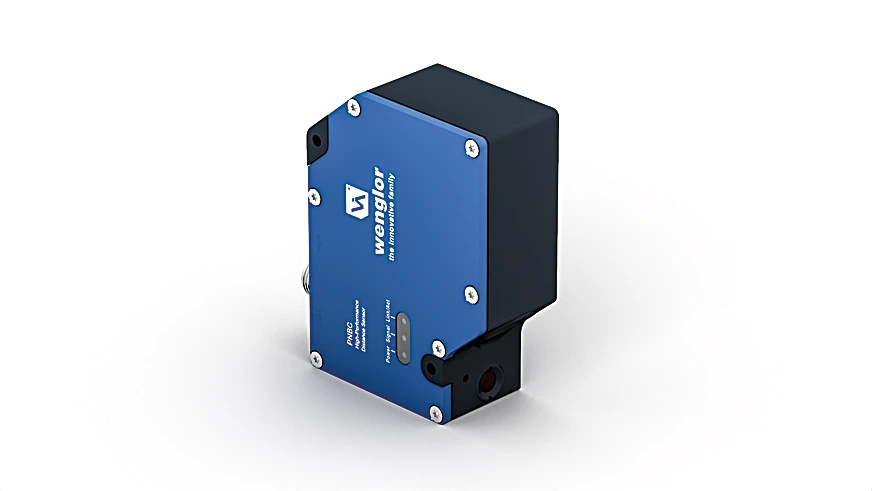

Wenglor PNBC001 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$6,658.00
Part Number
  • PNBC001
Highlights...

Features

  • Highly precise measurement with a maximum linearity deviation of 0.05%
  • Constant, surface-independent measured values
  • Thermally stable measured values without any warm-up phase
  • Industry 4.0 compatible thanks to Industrial Ethernet
  • Working Range: 20 to 24 mm
  • Measuring Range: 4 mm
  • Resolution: 0.06 µm
  • Linearity Deviation: 2 µm
  • Light Source: Laser (red)
  • Wavelength: 658 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: < 0.15 mm
  • Supply Voltage: 15 to 30 V DC
  • Current Consumption (Ub = 24 V): 280 mA
  • Switching Frequency: 15 kHz
  • Response Time: < 33 µs
  • Output rate: 10 to 30,000 /s
  • Temperature Drift: 0.005 %/K
  • Temperature Range: 14°F to 104°F
  • Number of Switching Outputs: 4
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 100 mA
  • Analog Output: 4 to 20 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: VT, FT
  • Interface: Ethernet TCP/IP
  • Transmission rate: 100 Mbit/s
  • Protection Class: III
  • FDA Accession Number: 1620645-000

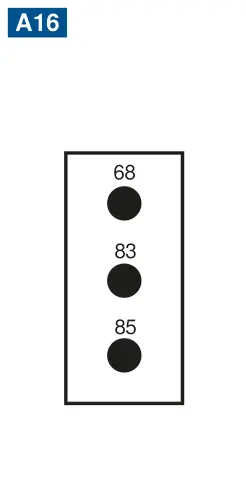

  • Setting Method: Teach-In, Web server

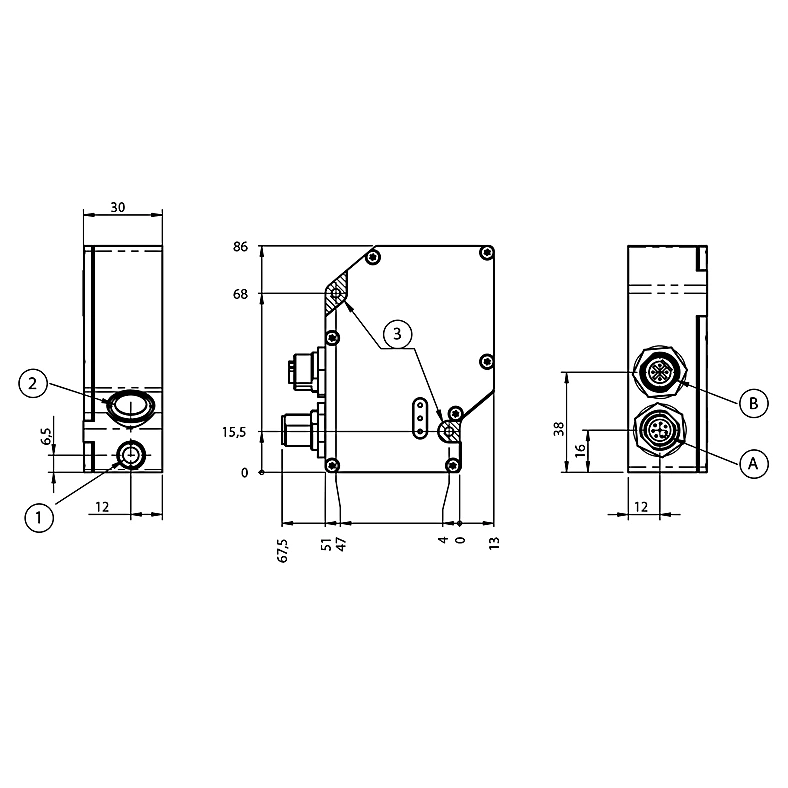

  • Housing Material: Aluminum, anodised
  • Degree of Protection: IP67

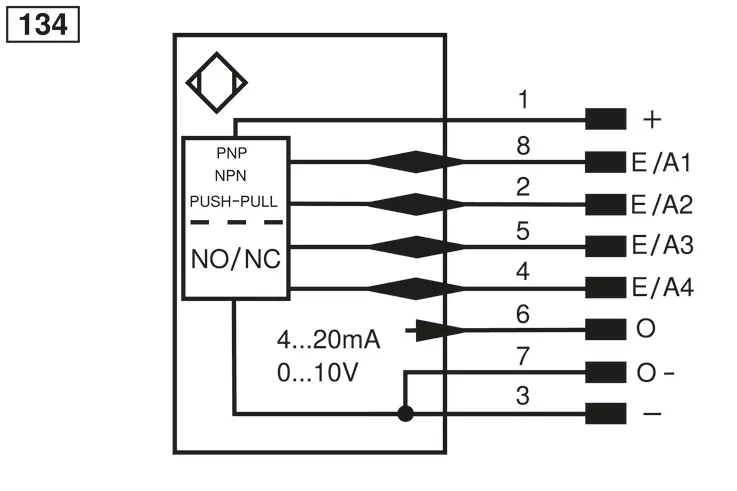

  • Connection: M12 × 1; 8-pin

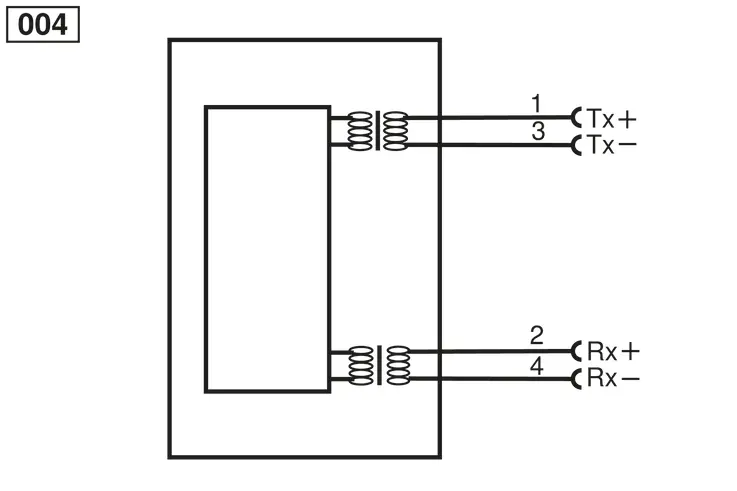

  • Type of Connection Ethernet: M12 × 1; 4-pin, D-cod.
  • Optic Cover: Glass
  • Weight: 406 g
  • Scope of delivery: 1 × sensor, 1 × laser warning sign
  • Push-Pull: yes
  • Output: Analog Output, Push-pull, NPN, PNP
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Circuit: NC, NC/NO, NO
  • Complementary Products: IO-Link converter, Cooling Unit ZNBK001, Protective Screen Retainer ZNBS001, Software, Switch ZAC51xN01
Sensors from the PNBC range work with a high resolution CMOS line array and determine distance to the object by means of angular measurement. Top quality optics permit measured values with 16-bit resolution. Thanks to proven algorithms, stable measured values are obtained even for complex surfaces, for example sheet metal with speckle effect. They demonstrate outstanding accuracy with maximum linearity deviation of just 0.05%, and required only a short warm-up phase thanks to minimized temperature drift. Values are read out simultaneously via the analog output and the interface. Up to 4 switching outputs can be taught in externally. An incremental encoder input rounds the product out.
