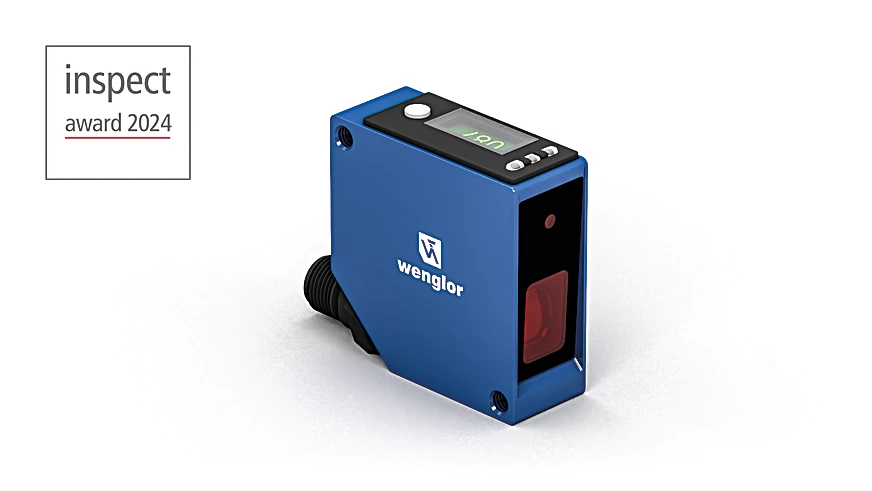

Wenglor P3PC311 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$1,975.00
Part Number
  • P3PC311
Highlights...

Features

  • Integrated jump detection
  • Intuitive operating concept
  • Measured value independent of material, color and brightness
  • Rugged aluminium housing
  • Analog output: 4…20 mA
  • Working Range: 60 to 660 mm
  • Measuring Range: 60 to 660 mm
  • Reproducibility maximum: 550 µm
  • Reproducibility: 1 Sigma: 30 µm
  • Linearity Deviation: 900 µm
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 20,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Measuring Rate: 2,500 /s
  • Response Time: < 0.5 ms
  • Temperature Drift: < 50 µm/K
  • Temperature Range: -22°F to 140°F
  • Analog Output: 4 to 20 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link Version: 1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2310674-000

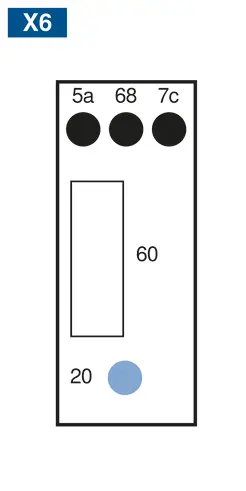

  • Setting Method: (OLED)/Bluetooth menu
  • Housing Material: Aluminum, anodised, Plastic, ABS
  • Degree of Protection: IP67
  • Connection: M12 × 1; 5-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 71 g
  • MTTFd (EN ISO 13849-1): 408.4 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • IO-Link: yes

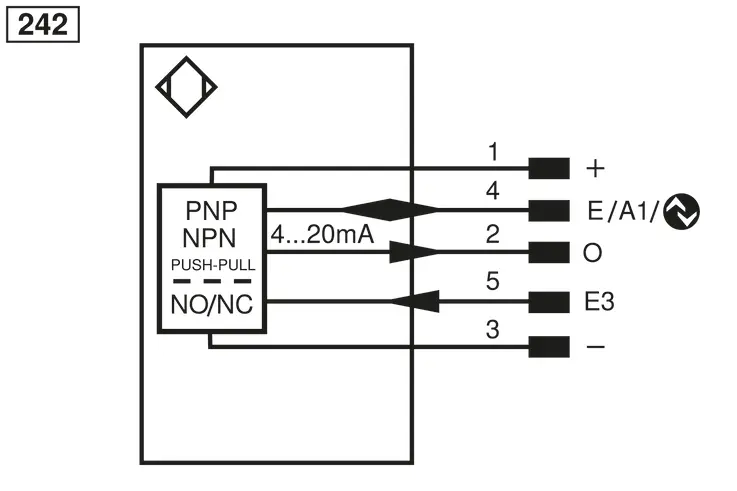

  • Output: Error Output, Push-pull, NPN, PNP
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Circuit: NC, NC/NO, NO
  • Other parameters: Exposure time, Laser light, Switching hysteresis, Teach-in mode, Off-delay, On-delay
  • Working Distance: 60 mm, 360 mm, 660 mm
  • Light Spot Diameter: 1,5 mm, 1 mm, 0,5 mm
  • Complementary Products: IO-Link converter, IO-Link Master, Protective Screen, Software, Dust extraction tube
These laser distance sensors work with a fine red light beam and a high-resolution CMOS line. They determine the distance between the sensor and the object by means of the triangulation principle. Thanks to the integrated TripleA technology, the sensors offer high precision, temperature stability and material independence. This means they deliver accurate results even with objects of different materials, colors and shapes, as well as in fluctuating light and temperature conditions. Settings are entered via the easy-to-read OLED display or via Bluetooth using the weCon app.
