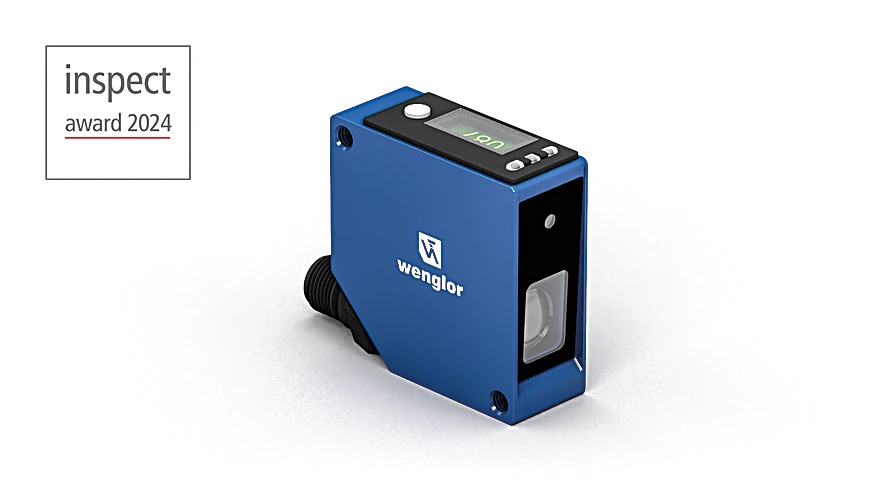

Wenglor P3PC142 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$2,051.00
Part Number
  • P3PC142
Highlights...

Features

  • Wireless settings via Bluetooth
  • Graphical display for easy operation
  • Measured value independent of material, color and brightness
  • Rugged aluminium housing
  • Analog output 0…10 V
  • Working Range: 40 to 240 mm
  • Measuring Range: 40 to 240 mm
  • Reproducibility maximum: 40 µm
  • Reproducibility: 1 Sigma: 4 µm
  • Linearity Deviation: 200 µm
  • Light Source: Laser (blue)
  • Wavelength: 405 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 5,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 70 mA
  • Measuring Rate: 2,500 /s
  • Response Time: < 0.5 ms
  • Temperature Drift: < 15 µm/K
  • Temperature Range: 32°F to 140°F
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link Version: 1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2310698-000

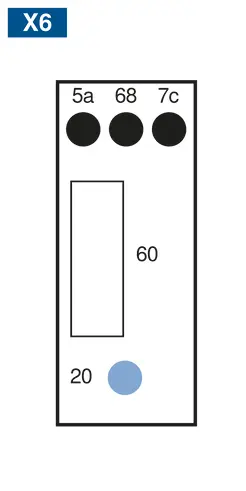

  • Setting Method: (OLED)/Bluetooth menu
  • Housing Material: Aluminum, anodised, Plastic, ABS
  • Degree of Protection: IP67
  • Connection: M12 × 1; 5-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 71 g
  • MTTFd (EN ISO 13849-1): 398.5 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • IO-Link: yes

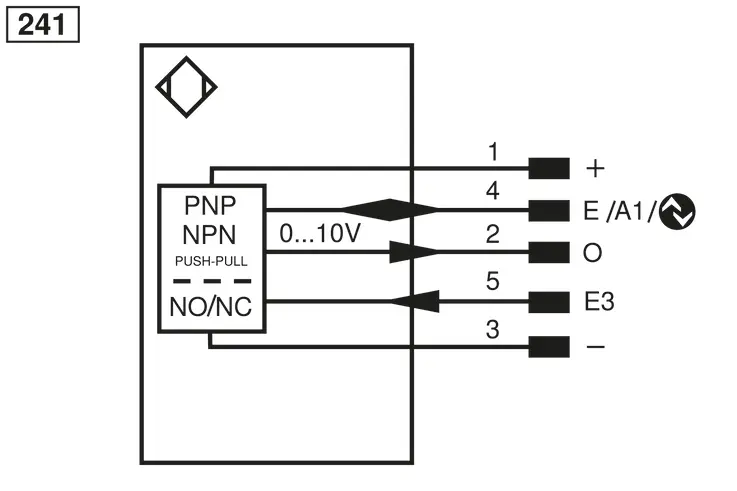

  • Output: Error Output, Push-pull, NPN, PNP
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Circuit: NC, NC/NO, NO
  • Other parameters: Exposure time, Laser light, Switching hysteresis, Teach-in mode, Off-delay, On-delay
  • Working Distance: 40 mm, 140 mm, 240 mm
  • Light Spot Diameter: 1,5 mm, 1 mm, 1 mm
  • Complementary Products: IO-Link converter, IO-Link Master, Protective Screen, Software, Dust extraction tube
These laser distance sensors work with a fine blue light beam and a high-resolution CMOS line. They determine the distance between the sensor and the object by means of the triangulation principle. Thanks to the integrated TripleA technology, the sensors offer high precision, temperature stability and material independence. This means they deliver accurate results even with objects of different materials, colors and shapes, as well as in fluctuating light and temperature conditions. The blue laser light enables enhanced performance on challenging surfaces. Settings are entered via the easy-to-read OLED display or via Bluetooth using the weCon app.
