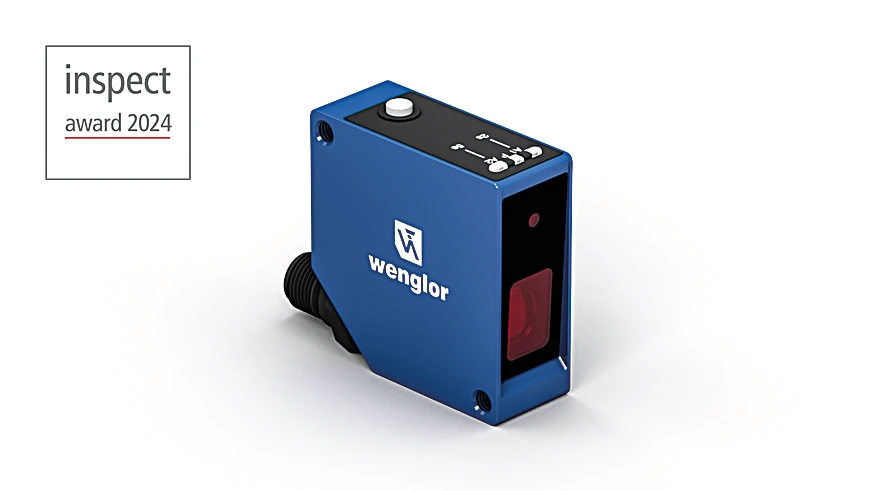

Wenglor P3PC102 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$1,204.00
Part Number
  • P3PC102
Highlights...

Features

  • Switching point independent of material, color and brightness
  • 2 mutually independent switching outputs
  • Integrated jump detection

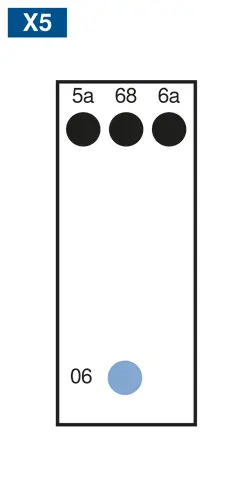

  • Intuitive operating concept
  • Rugged aluminium housing
  • Working Range: 40 to 240 mm
  • Setting Range: 40 to 240 mm
  • Reproducibility maximum: 70 µm
  • Reproducibility: 1 Sigma: 6 µm
  • Linearity Deviation: 200 µm
  • Switching Hysteresis: < 0.5 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 20,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 50 mA
  • Switching Frequency: 650 Hz
  • Response Time: < 0.5 ms
  • Temperature Drift: < 15 µm/K
  • Temperature Range: -22°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link Version: 1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2310674-000
  • Setting Method: Teach-In
  • Housing Material: Aluminum, anodised, Plastic, ABS
  • Degree of Protection: IP67

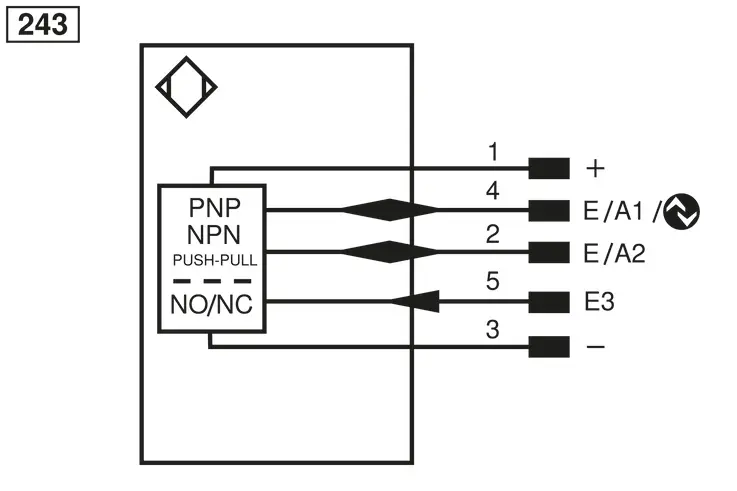

  • Connection: M12 × 1; 5-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 69 g
  • MTTFd (EN ISO 13849-1): 720.35 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • IO-Link: yes
  • Output: Error Output, Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Exposure time, Laser light, Switching hysteresis, Teach-in mode, Off-delay, On-delay
  • Detection Range: 40 mm, 140 mm, 240 mm
  • Light Spot Diameter: 1,5 mm, 1 mm, 1 mm
  • Complementary Products: IO-Link Master, Protective housing, Protective Screen, Software, Dust extraction tube
These laser distance sensors work with a fine red light beam and a high-resolution CMOS line. They determine the distance between the sensor and the object by means of the triangulation principle. Thanks to the integrated TripleA technology, the sensors offer high precision, temperature stability and material independence. This means they deliver accurate results even with objects of different materials, colors and shapes, as well as in fluctuating light and temperature conditions. The intuitive operating concept simplifies initial start-up and makes the sensors versatile all-rounders.
