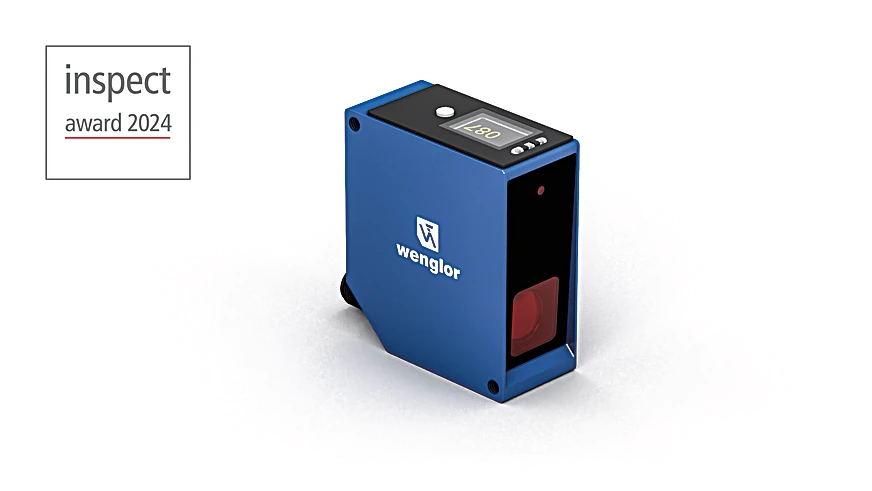

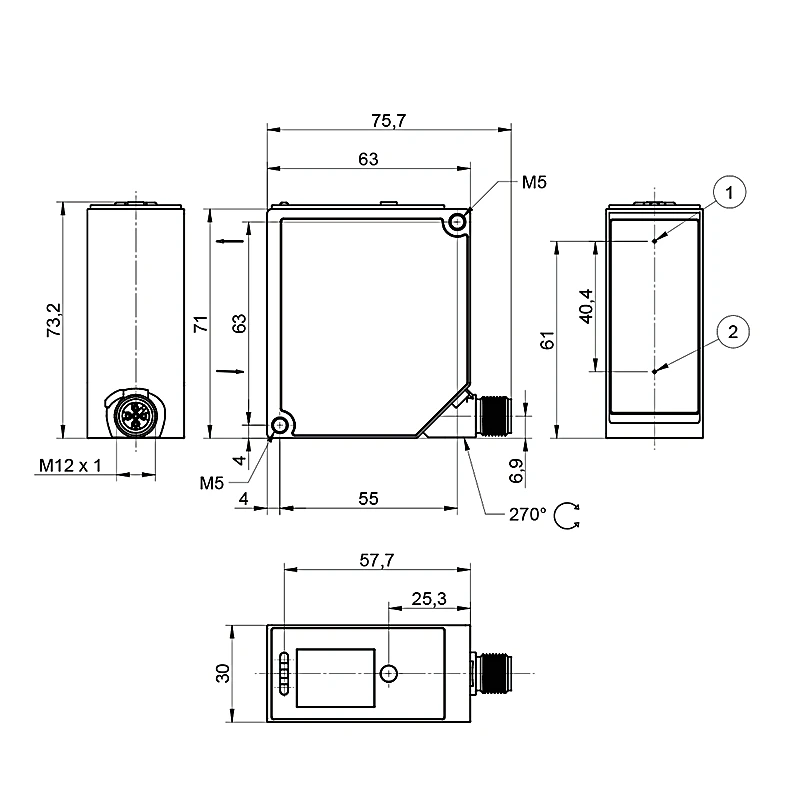

Wenglor P3EC413 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$2,280.00
Part Number
  • P3EC413
Highlights...

Features

  • Analog output: 4…20 mA
  • Graphical display for easy operation
  • Measured value independent of material, color and brightness
  • Rugged aluminium housing
  • Switching output
  • Working Range: 150 to 1,000 mm
  • Measuring Range: 150 to 1,000 mm
  • Reproducibility: 1 Sigma: 35 µm
  • Linearity Deviation: 750 µm*
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 20,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Measuring Rate: 2,500 /s
  • Response Time: < 0.5 ms
  • Temperature Drift: < 75 µm/K
  • Temperature Range: -22°F to 140°F
  • Analog Output: 4 to 20 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2311155-000

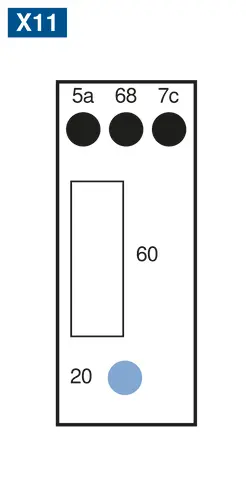

  • Setting Method: Menu (OLED)
  • Housing Material: Aluminum, anodised, Plastic, ABS
  • Degree of Protection: IP67

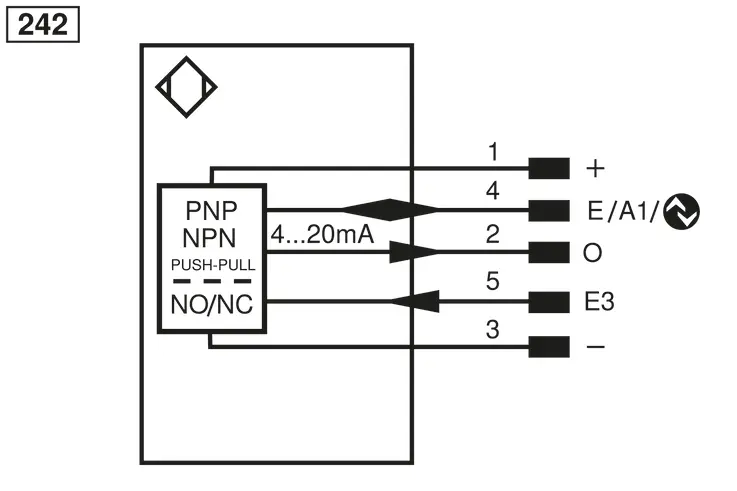

  • Connection: M12 × 1; 5-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 188 g
  • MTTFd (EN ISO 13849-1): 397.4 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • Analog Output: yes
  • IO-Link: yes
  • Output: Error Output, Push-pull, NPN, PNP
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Circuit: NC, NC/NO, NO
  • Other parameters: Exposure time, Laser light, Switching hysteresis, Teach-in mode, Off-delay, On-delay
  • External Information: Filter 6 preset, A2 preset as switching output
  • Working Distance: 150 mm, 575 mm, 1000 mm
  • Light Spot Diameter: 1 mm, 1 mm, 1 mm
  • Complementary Products: Software, IO-Link Master, Protective Screen
These laser distance sensors work with a fine red light beam and a high-resolution CMOS line. They determine the distance between the sensor and the object by means of the triangulation principle. Thanks to the integrated TripleA technology, the sensors offer high precision, temperature stability and material independence. This means they deliver accurate results even with objects of different materials, colors and shapes, as well as in fluctuating light and temperature conditions. The intuitive operating concept simplifies initial start-up and makes the sensors versatile all-rounders.
