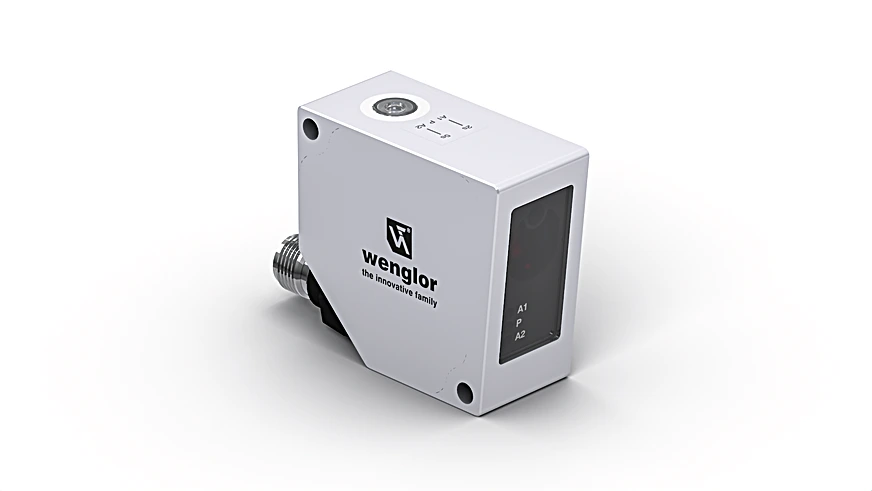

Wenglor P2PY101 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,051.00
Part Number
  • P2PY101
Highlights...

Features

  • 2 mutually independent switching outputs
  • Robust stainless steel housing with IP69K
  • Wide working range and precise detection thanks to DS technology
  • No interactive influence
  • Working Range: 0 to 10,000 mm
  • Setting Range: 50 to 10,000 mm
  • Reproducibility maximum: 3 mm*

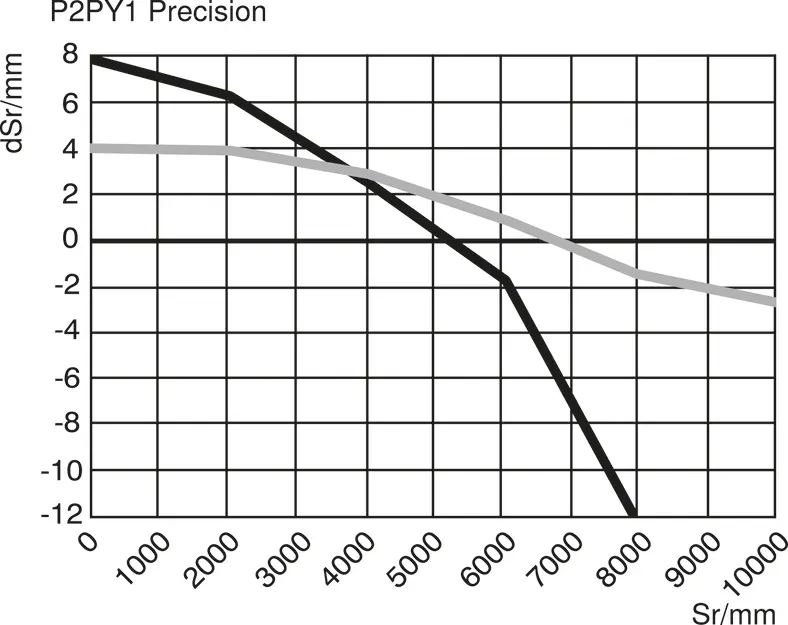

  • Linearity Deviation: 10 mm*
  • Switching Hysteresis: < 15 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 100,000 Lux

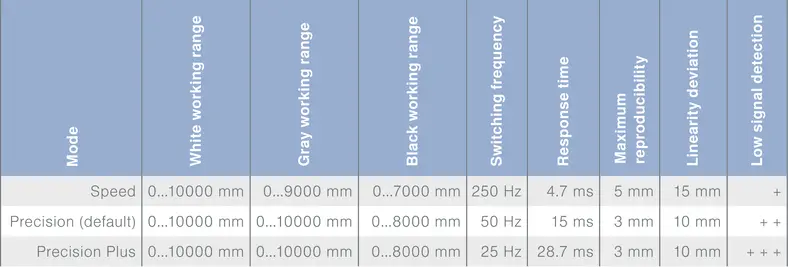

  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 35 mA
  • Switching Frequency: 50 Hz*
  • Switching Frequency (max.): 250 Hz*
  • Response Time: 15 ms *
  • Response Time (min.): 4.7 ms *
  • Temperature Drift: < 0.4 mm/K
  • Temperature Range: -40°F to 131°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2110079-001
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68, IP69K

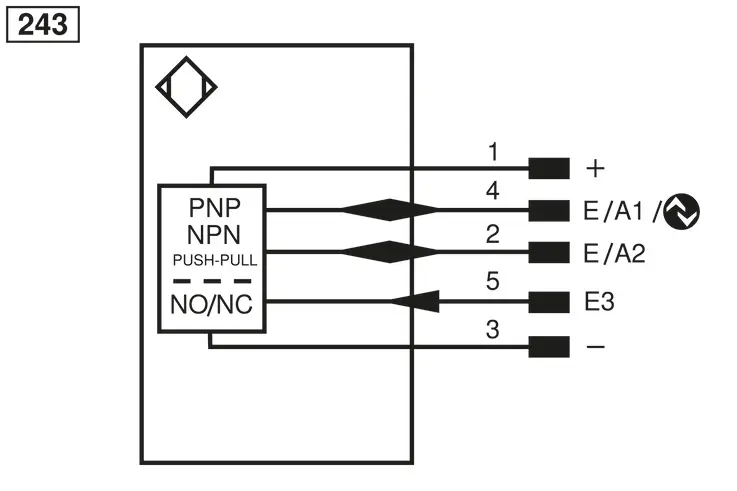

  • Connection: M12 × 1; 5-pin
  • FDA compliant: yes
  • Weight: 182 g
  • MTTFd (EN ISO 13849-1): 543.71 a
  • Approvals: Ecolab, FDA compliant
  • Scope of delivery: 1 × BEF-SET-49 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Acceleration sensor: yes
  • Output: Error Output, Push-pull, NPN, Warning output
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay, Acceleration sensor, Sensitivity, Filter, Unit of measure, Measuring mode, Emitted light, Sensor localization, Teach mode
  • Working Distance: 0 m, 5 m, 10 m
  • Light Spot Diameter: 5 mm, 10 mm, 15 mm
  • Complementary Products: IO-Link Master, Software
These sensors function in accordance with the principle of transit time measurement with laser class 1. wintec with Dynamic Sensitivity technology (DS) enables previously unattainable reception sensitivity even with very weak signals. As a result, the sensors have a large working range of up to 10 m and can reliably detect dark or shiny objects even at extreme angles. wintec also works very reliably in adverse ambient conditions, such as those caused by ambient light or contamination. The robust 316L stainless steel housing (1.4404/V4A ) is resistant to oils, coolants, and cleaning agents.
