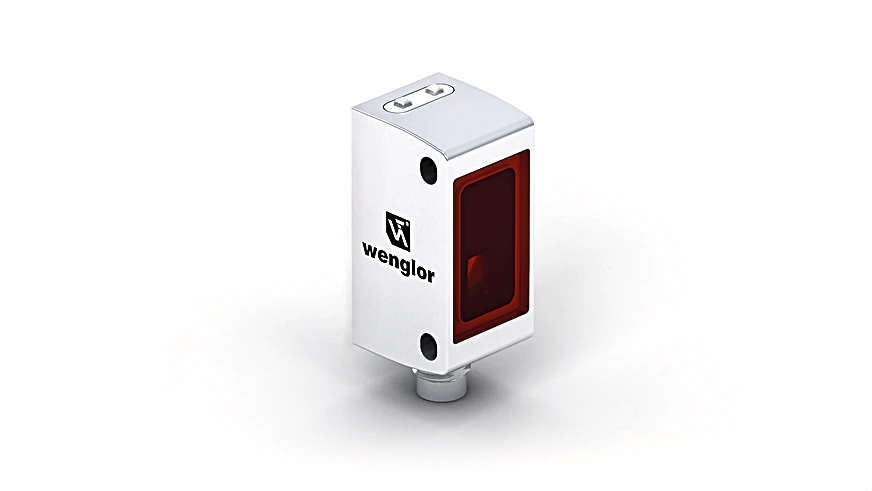

Wenglor P2KS003 Through-Beam Sensor

Through-Beam Sensor.

$329.00
Part Number
  • P2KS003
Highlights...

Features

  • Very high switching frequency
  • Test input for high operational reliability
  • Robust stainless steel housing with IP69K
  • Detect extremely small parts starting at 1 mm
  • Range: 10,000 mm
  • Light Source: Laser (red)
  • Wavelength: 680 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Temperature Drift (14°F < Tu < 104°F): 10 % *
  • Temperature Range: -40°F to 122°F
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • FDA Accession Number: 1710976-004
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP68, IP69K

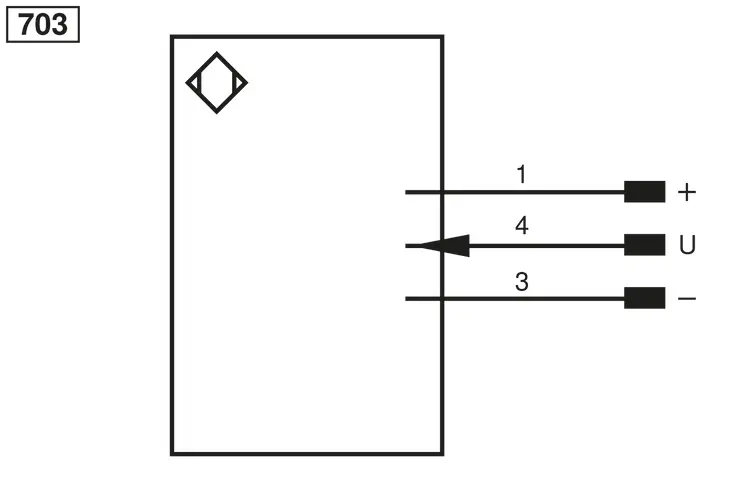

  • Connection: M8 × 1; 3-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 42 g
  • MTTFd (EN ISO 13849-1): 2,920.28 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab
  • Working Distance: 1 m, 6 m, 10 m
  • Light Spot Diameter: 2,5 mm, 25 mm, 40 mm
The through-beam sensor works with a fine laser beam as well as an emitter and receiver. The collimated class 1 laser beam detects objects, e.g., when conducting installation, feed, or presence checks, starting from a size of 1.0 mm, over the entire range. The emitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as to read out switching statuses and signal values. The robust 316L stainless steel housing (1.4404/V4A) is resistant to oils, coolants, and cleaning agents.
