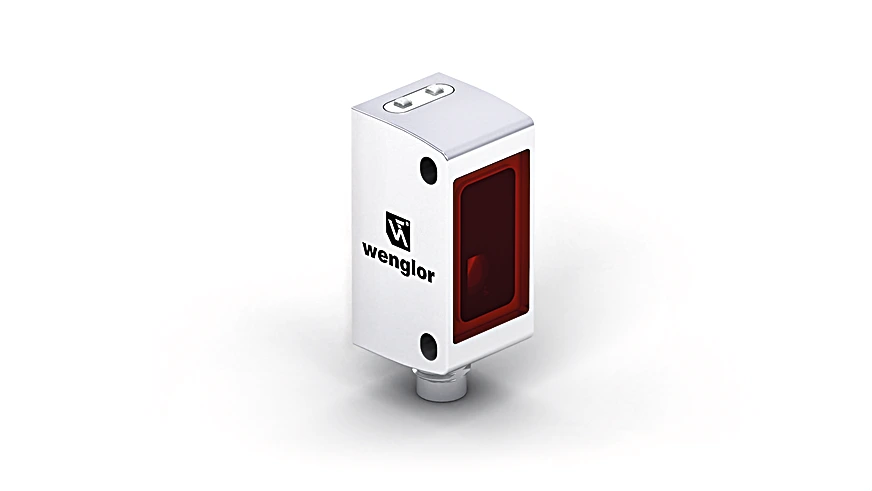

Wenglor P2KS002 Through-Beam Sensor

Through-Beam Sensor.

$185.00
Part Number
  • P2KS002
Highlights...

Features

  • Condition monitoring
  • High light intensity with large switching reserve
  • Test input for high operational reliability
  • Robust stainless steel housing with IP69K
  • Range: 6,000 mm
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 140°F
  • Reverse Polarity Protection: yes
  • Lockable: yes
  • Test input: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP68, IP69K

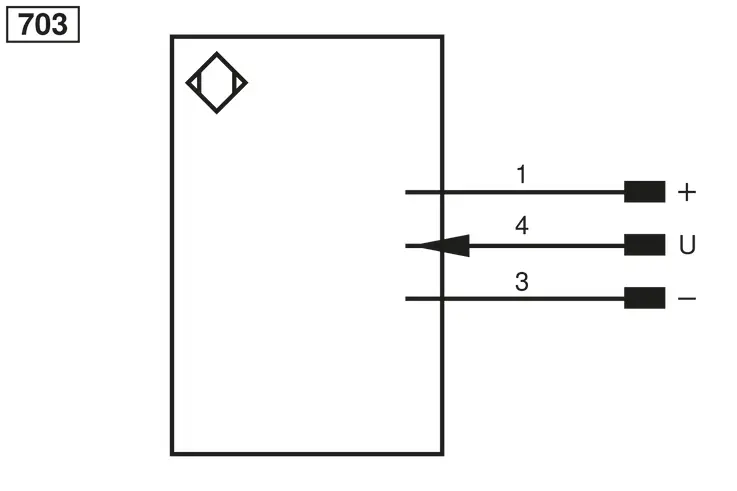

  • Connection: M8 × 1; 3-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 42 g
  • MTTFd (EN ISO 13849-1): 2,986.76 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab
  • Working Distance: 1 m, 2 m, 6 m
  • Light Spot Diameter: 70 mm, 140 mm, 500 mm
The through-beam sensor works with red light as well as a transmitter and a receiver. Thanks to their high light intensity, the sensor provides a high degree of operational reliability even with interferences like steam, fog or dust. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values. The robust V4A (1.4404/316L) stainless steel housing is resistant to oils and coolants, as well as cleaning agent.
