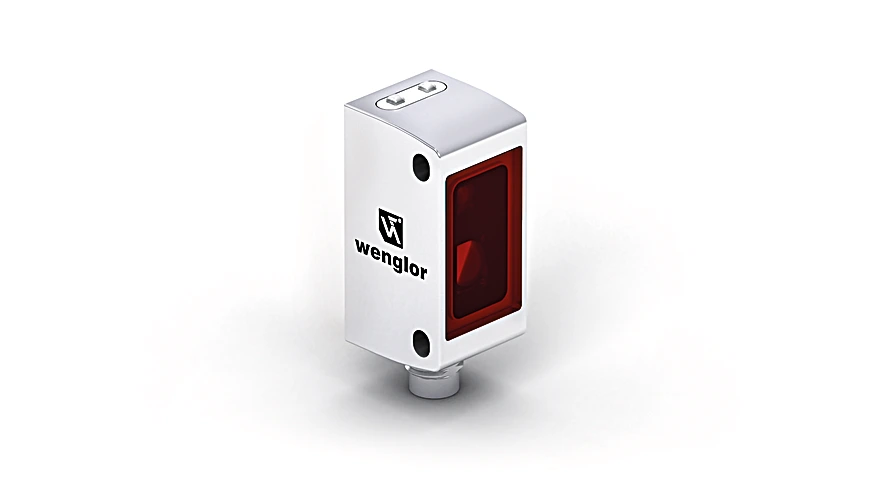

Wenglor P2KK004 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$373.00
Part Number
  • P2KK004
Highlights...

Features

  • Condition monitoring
  • Dynamic readjustment of the switching threshold
  • Special for glass, PET and films
  • High-end
  • Robust stainless steel housing with IP69K
  • Range: 2,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Clear Glass Recognition: yes
  • Smallest Recognizable Part: see table 2
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optics: Single-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1,000 Hz
  • Switching frequency (speed mode): 2,000 Hz
  • Response Time: 0.5 ms
  • Response time (speed mode): 0.25 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP68, IP69K
  • Connection: M8 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 42 g
  • MTTFd (EN ISO 13849-1): 2,175.32 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab
  • IO-Link: yes
  • NPN NC, NPN NO: yes

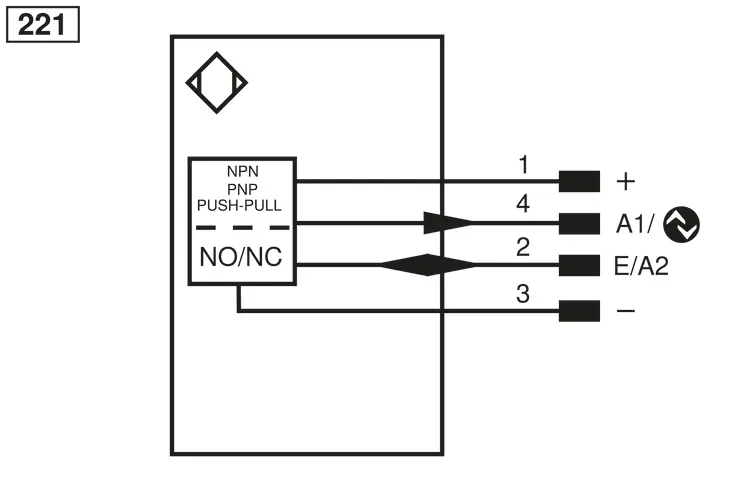

  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, NC/NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Dynamic readjustment, Switching point
  • Working Distance: 0,5 m, 1,3 m, 2 m
  • Light Spot Diameter: 30 mm, 100 mm, 150 mm
  • RQ100BA: 0 to 2 m
  • RE18040BA: 0 to 1.1 m
  • RQ84BA: 0 to 1.6 m
  • RR84BA: 0 to 1.9 m
  • RE9538BA: 0 to 0.7 m
  • RE6151BM: 0 to 1.5 m
  • RR50_A: 0 to 1.05 m
  • RE6040BA: 0 to 1.2 m
  • RE8222BA: 0 to 0.85 m
  • RR34_M: 0 to 1 m
  • RE3220BM: 0 to 0.7 m
  • RE6210BM: 0 to 0.45 m
  • RR25_M: 0 to 0.55 m
  • RR25KP: 0 to 0.3 m
  • RR21_M: 0 to 0.5 m
  • Z90R004: 0 to 0.7 m
  • Z90R005: 0 to 1 m
  • Z90R006: 0 to 1 m
  • ZRAE02B01: 0 to 0.7 m
  • ZRME01B01: 0 to 0.25 m
  • ZRME03B01: 0 to 0.9 m
  • ZRMR02K01: 0 to 0.35 m
  • ZRMS02_01: 0 to 0.45 m
  • RF505: 0 to 0.4 m
  • RF508: 0 to 0.4 m
  • RF258: 0 to 0.4 m
  • ZRAF08K01: 0 to 0.4 m
  • ZRDF03K01: 0 to 1.2 m
  • ZRDF10K01: 0 to 1.3 m
  • Complementary Products: Reflector, Reflector Foil, IO-Link Master, Software
The retro-reflex sensor for transparent objects works with red light and a reflector. It has an IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The dynamic readjustment of the switching threshold function automatically adjusts this for contamination, aging or temperature deviations, meaning that these factors have almost no effect on functionality. The robust V4A (1.4404/316L) stainless steel housing is resistant to oils and coolants, as well as cleaning agent.
