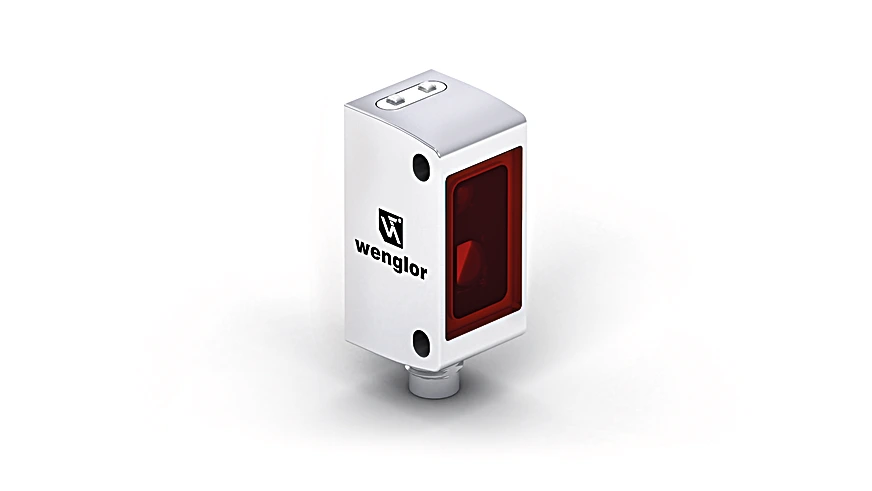

Wenglor P2KH002 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$297.00
Part Number
  • P2KH002
Highlights...

Features

  • Condition monitoring

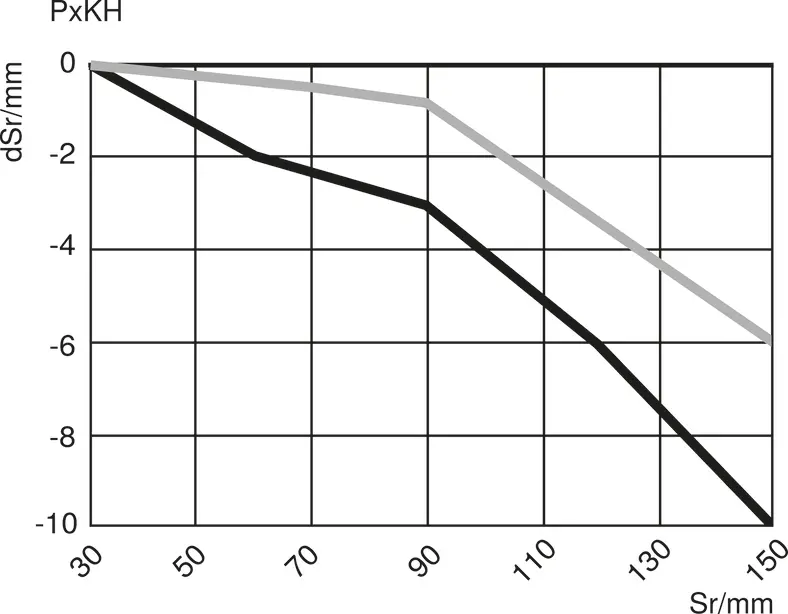

  • Low switching distance deviation for black/white
  • Reliably detect objects against any background
  • Robust stainless steel housing with IP69K
  • Range: 150 mm
  • Setting Range: 30 to 150 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1,000 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response time (interference-free mode): 1 ms
  • Response Time: 0.5 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP68, IP69K
  • Connection: M8 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 42 g
  • MTTFd (EN ISO 13849-1): 1,699.11 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab
  • PNP NC, PNP NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: inactive, Error output, NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 50 mm, 100 mm, 150 mm
  • Light Spot Diameter: 5 mm, 7 mm, 10 mm
  • Complementary Products: IO-Link Master, Software
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as to output switching statuses and distance values. The robust V4A (1.4404/316L) stainless steel housing is resistant to oils and coolants, as well as cleaning agent.
