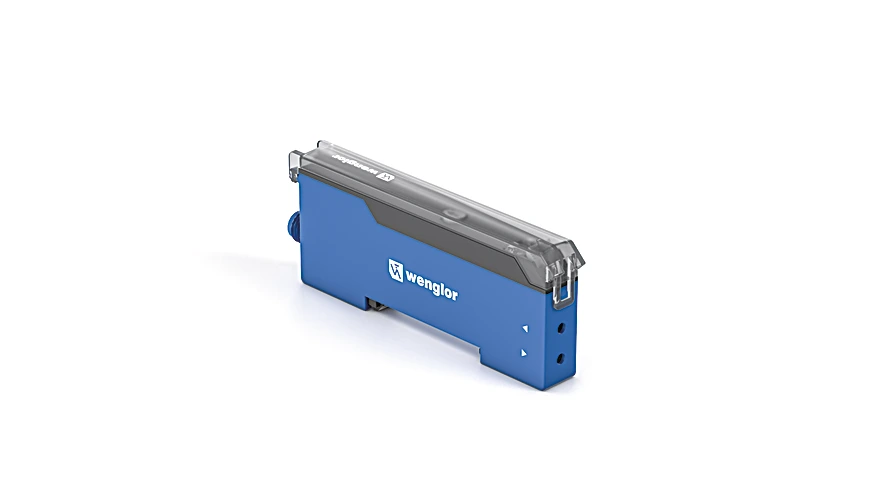

Wenglor P1XD002 Fiber-optic amplifier

Fiber-optic amplifier.

$192.00
Part Number
  • P1XD002
Highlights...

Features

  • Tool-free assembly
  • Can be adjusted using potentiometers
  • IO-Link 1.1
  • Diverse usage options: Barrier, reflex, reflex light barrier
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Wavelength: 633 nm
  • Service Life (T = 77°F): > 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 0.9 kHz
  • Switching frequency (speed mode): 1.8 kHz
  • Response Time: 263 µs
  • On-/Off-Delay: 0 to 200 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • IO-Link transmission speed: COM2
  • Interface: IO-Link V1.1
  • Protection Class: III

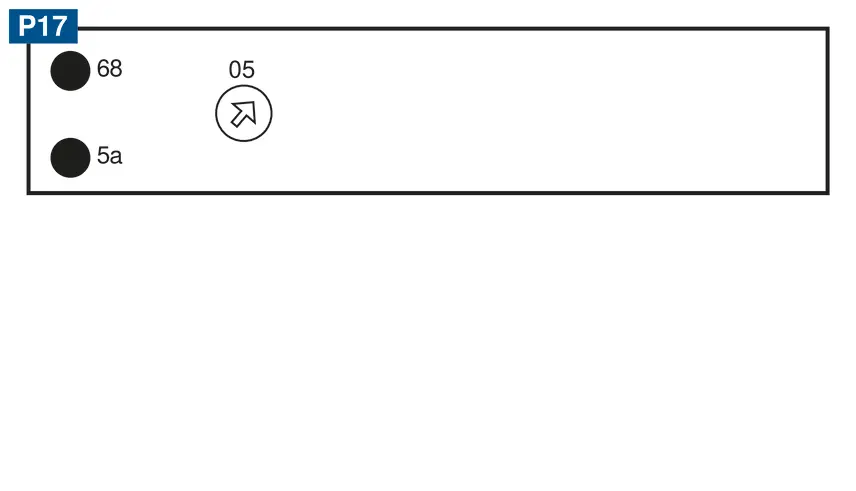

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS, Plastic, PC, Plastic, PA
  • Degree of Protection: IP50

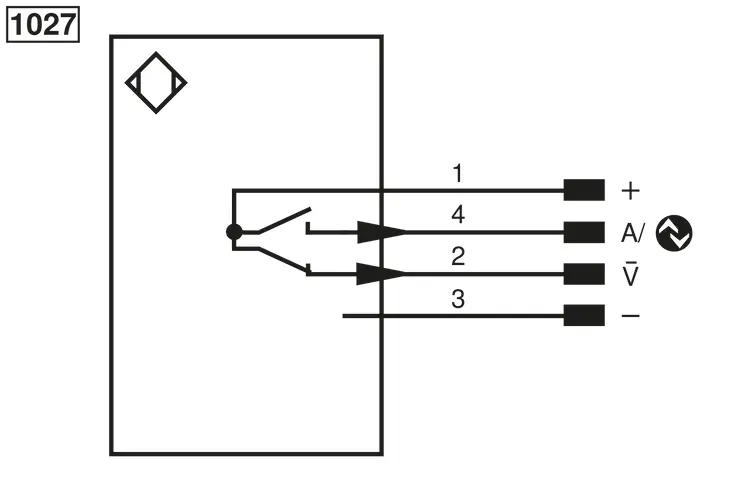

  • Connection: M8 × 1; 4-pin
  • DIN-Rail mounting: 35 mm
  • Weight: 33 g
  • MTTFd (EN ISO 13849-1): 640.47 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • IO-Link: yes
  • PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: Error output, inactive
  • Complementary Products: Plastic Fiber-Optic Cable, IO-Link Master
Fiber-optic sensors work according to the energetic principle in which light is emitted via one fiber-optic cable and received via another. The amplifier can be adapted to a wide range of application requirements through the use of flexible plastic fiber-optic cables or glass fiber-optic cables with adapter no. 7. The switching point can be easily adjusted using the potentiometer. Both the fiber-optic cable and the sensor can be mounted without tools, which further simplifies handling.
