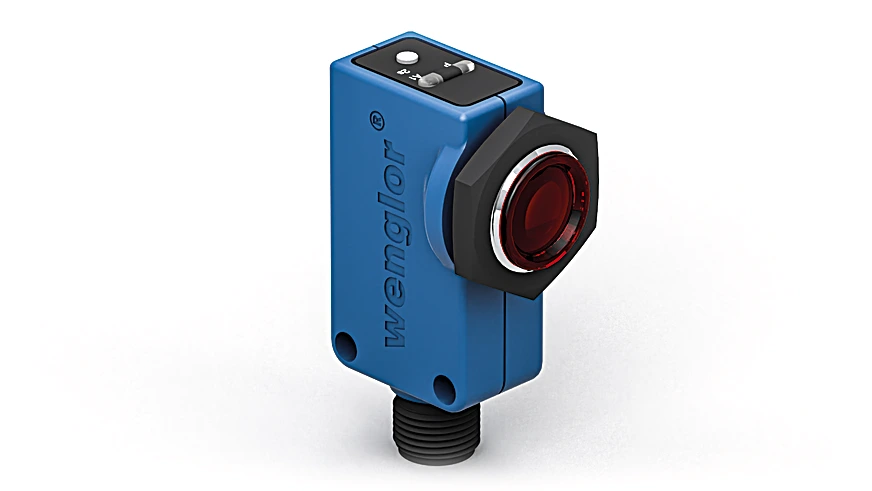

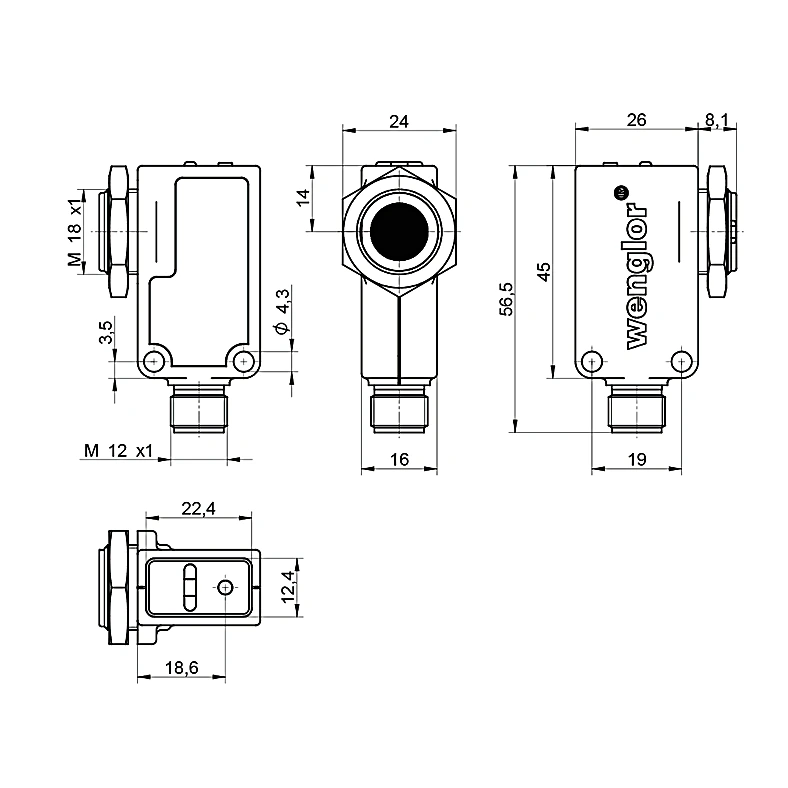

Wenglor P1RL003 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$304.00
Part Number
  • P1RL003
Highlights...

Features

  • Simple installation
  • IO-Link 1.1
  • Laser class 1
  • Teach-in, external teach-in
  • Range: 12,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Smallest Recognizable Part: see table 2
  • Switching Hysteresis: < 5 %
  • Light Source: Laser focused (red)
  • Wavelength: 655 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optics: Single-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1,000 Hz
  • Switching frequency (speed mode): 2,000 Hz
  • Response Time: 0.5 ms
  • Response time (speed mode): 0.25 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • NPN Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 2411239-000

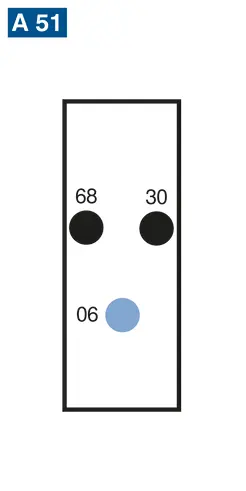

  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT, Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67, IP68

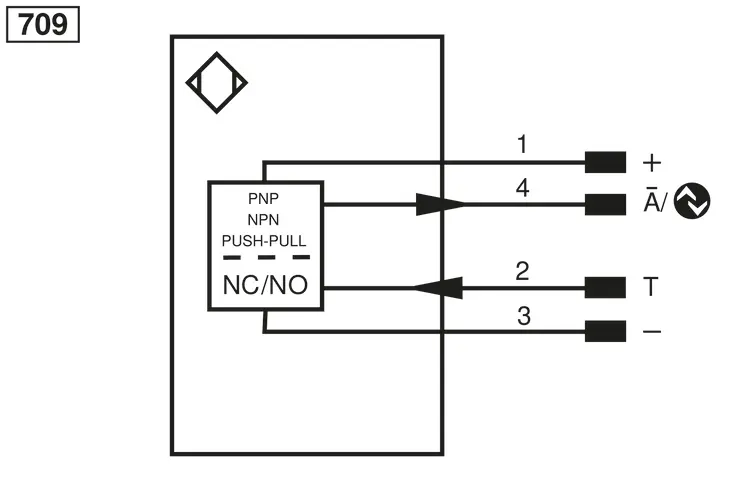

  • Connection: M12 × 1; 4-pin
  • Weight: 27 g
  • MTTFd (EN ISO 13849-1): 2,817.28 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • IO-Link: yes
  • NPN NC: yes
  • External teach-in input: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light, Teach-in mode
  • Working Distance: 1,2 m, 6 m, 12 m
  • Light Spot Diameter: 10 mm, 60 mm, 70 mm
  • RQ100BA: 0 to 12 m
  • RE18040BA: 0 to 8 m
  • RQ84BA: 0 to 12 m
  • RR84BA: 0 to 11 m
  • RE9538BA: 0 to 3.5 m
  • RE6151BM: 0 to 9 m
  • RR50_A: 0 to 9 m
  • RE6040BA: 0 to 9 m
  • RE8222BA: 0 to 6 m
  • RE3220BM: 0 to 3.5 m
  • RE6210BM: 0 to 3.5 m
  • RR25_M: 0 to 5 m
  • RR25KP: 0 to 1.5 m
  • RR21_M: 0 to 5 m
  • ZRAE02B01: 0 to 3.5 m
  • ZRME01B01: 0 to 2 m
  • ZRME03B01: 0 to 3 m
  • ZRMR02K01: 0 to 2 m
  • ZRMS02_01: 0 to 4 m
  • RF505: 0 to 2 m
  • RF508: 0 to 2 m
  • RF258: 0 to 2 m
  • ZRAF08K01: 0 to 2 m
  • ZRDF03K01: 0 to 7 m
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-01, IO-Link Master, Software
The retro-reflex sensor works with a fine laser beam and a reflector. The focused laser class 1 laser beam detects objects, e.g. during assembly, feed or presence checks, from 1 mm in size over the entire range. The IO-Link interface can be used to configure retro-reflex sensors (PNP/NPN, NC/NO, switching distance) and to output switching states and signal values.
