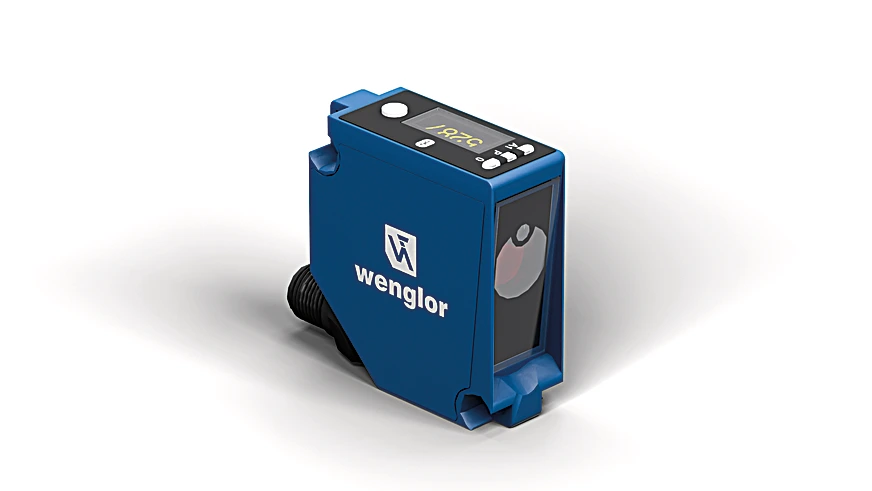

Wenglor P1PY208S01 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,013.00
Part Number
  • P1PY208S01
Highlights...

Features

  • Analog output: 4…20 mA
  • Wide working range and precise detection thanks to DS technology
  • Wireless settings via Bluetooth
  • Graphical display for easy operation
  • Working Range: 0 to 10,000 mm
  • Measuring Range: 50 to 10,000 mm
  • Reproducibility maximum: 3 mm*
  • Linearity Deviation: 10 mm*
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 100,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA

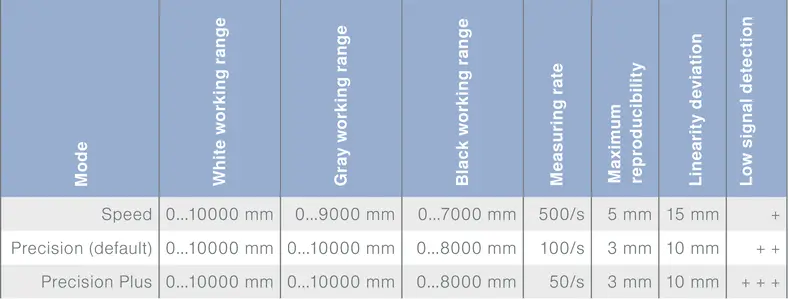

  • Measuring Rate: 100 /s*
  • Measuring Rate (max.): 500 /s*
  • Temperature Drift: < 0.4 mm/K
  • Temperature Range: -40°F to 122°F**
  • Analog Output: 4 to 20 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 2412451-000

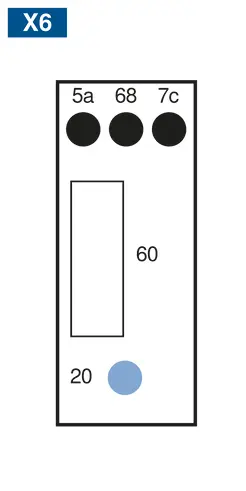

  • Setting Method: (OLED)/Bluetooth menu
  • Housing Material: Plastic, ABS
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67, IP68

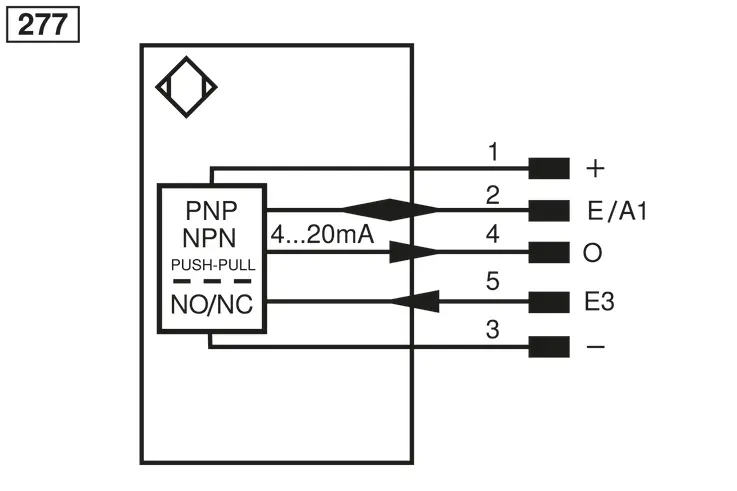

  • Connection: M12 × 1; 5-pin
  • Weight: 45 g
  • MTTFd (EN ISO 13849-1): 353.85 a
  • Scope of delivery: 1 × BEF-SET-14 mounting set, 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • Output: Error Output, Warning output
  • Analog output: 4 to 20 mA
  • Other parameters: Off-delay, On-delay, Sensitivity, Filter, Unit of measure, Measuring mode, Emitted light, Sensor localization, Teach mode
  • Working Distance: 0 m, 5 m, 10 m
  • Light Spot Diameter: 5 mm, 10 mm, 15 mm
  • Complementary Products: Protective Screen
The sensors function in accordance with the principle of transit time measurement with laser class 1. wintec with Dynamic Sensitivity technology (DS) enables previously unattainable reception sensitivity even with very weak signals. As a result, the sensors have a large working range of up to 10 m and can reliably detect dark or shiny objects even at extreme angles. wintec also works very reliably in adverse ambient conditions, such as those caused by ambient light or contamination. Extensive condition monitoring functions additionally enable predictive maintenance and trouble-free operation. Settings are entered via the easy-to-read OLED display or via Bluetooth using the weCon app.
