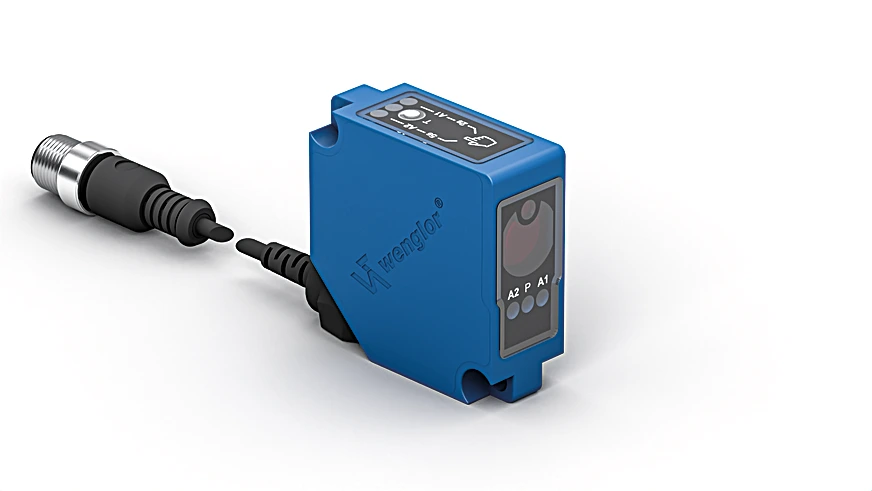

Wenglor P1PY002 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$659.00
Part Number
  • P1PY002
Highlights...

Features

  • Secure detection of black objects also in extremely inclined positions with wintec
  • No mutual interference with wintec
  • Interference-free towards gloss in the background with wintec
  • Reliable in case of glossy objects with wintec
  • 2 mutually independent switching outputs
  • Working Range: 0 to 3,000 mm
  • Setting Range: 200 to 3,000 mm
  • Switching Hysteresis: < 15 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Temperature Drift (14°F < Tu < 122°F): < 1 %
  • Temperature Drift (Tu < 14°F, Tu > 122°F): < 2.5 %
  • Temperature Range: -40°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 1910001-001
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS, Plastic, PC
  • Cable Jacket Material: Plastic, PUR
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68

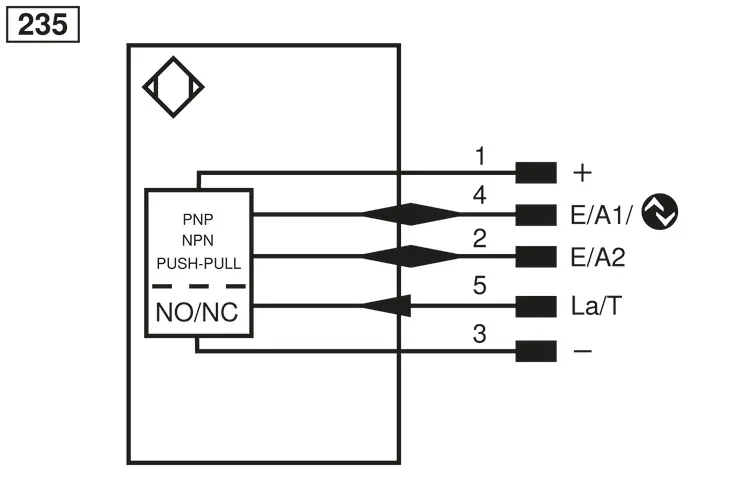

  • Connection: M12 × 1; 5-pin
  • Cable length (L): 500 mm
  • Weight: 88 g
  • MTTFd (EN ISO 13849-1): 949.92 a
  • Scope of delivery: 1 × BEF-SET-44 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Output: NPN, PNP
  • Circuit: NC, NO
  • Other parameters: Off-delay, On-delay, Emitted light
  • Working Distance: 0 m, 3 m
  • Light Spot Diameter: 5 mm, 9 mm
  • Complementary Products: Set Protective Housing ZSP-NN-02, Protective Housing ZSV-0x-01, IO-Link Master, Software, Dust extraction tube
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. wenglor interference-free technology (wintec) has revolutionized sensor technology: It makes it possible to mount several sensors directly next to, or opposite each other without the sensors influencing each other. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
