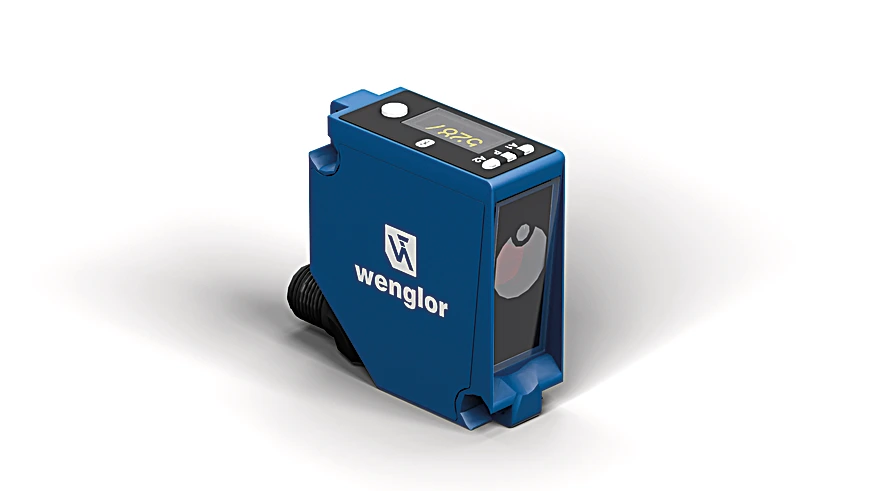

Wenglor P1PX201 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$815.00
Part Number
  • P1PX201
Highlights...

Features

  • 2 mutually independent switching outputs
  • Wide working range and precise detection thanks to DS technology
  • No interactive influence
  • Wireless settings via Bluetooth
  • Graphical display for easy operation
  • Working Range: 200 to 100,000 mm
  • Setting Range: 200 to 100,000 mm
  • Reference Reflector/Reflector Foil: ZRAF08K01
  • Reproducibility maximum: 20 mm*
  • Linearity Deviation: 50 mm*
  • Switching Hysteresis: < 50 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 25,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: yes
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA

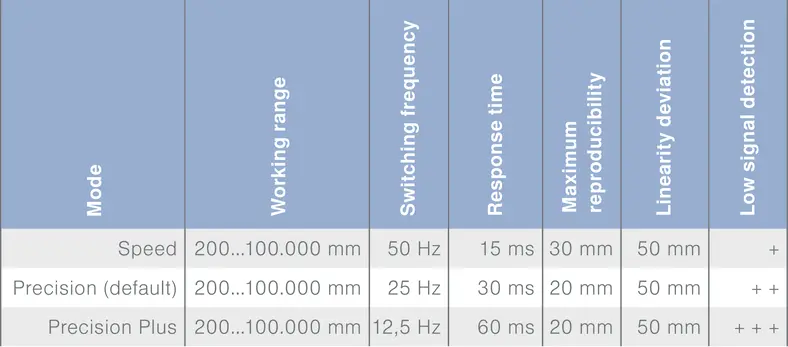

  • Switching Frequency: 25 Hz*
  • Switching Frequency (max.): 50 Hz*
  • Response Time: 30 ms *
  • Response Time (min.): 15 ms *
  • Temperature Drift: < 0.4 mm/K
  • Temperature Range: -40°F to 122°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1.3
  • IO-Link transmission speed: COM3
  • Protection Class: III
  • FDA Accession Number: 2412451-000

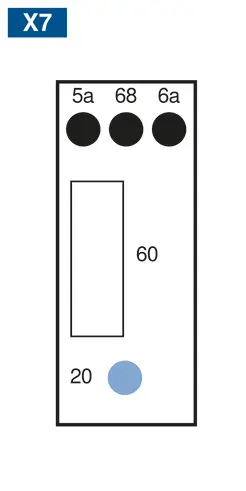

  • Setting Method: (OLED)/Bluetooth menu
  • Housing Material: Plastic, ABS
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67, IP68

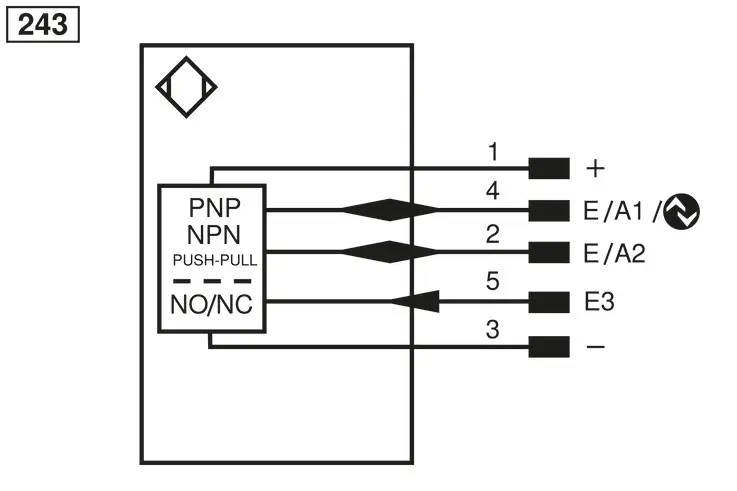

  • Connection: M12 × 1; 5-pin
  • Weight: 45 g
  • MTTFd (EN ISO 13849-1): 369.13 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Output: Error Output, Push-pull, NPN, PNP, Warning output
  • Circuit: NC/NO, NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Sensitivity, Filter, Unit of measure, Measuring mode, Emitted light, Sensor localization, Teach mode
  • Working Distance: 0 m, 50 m, 100 m
  • Light Spot Diameter: 5 mm, < 100 mm, < 200 mm
  • RQ100BA: 0.2 to 50 m
  • RE6151BM: 0.2 to 20 m
  • RF505: 0.2 to 75 m
  • RF508: 0.2 to 25 m
  • RF258: 0.2 to 20 m
  • RF100100: 0.2 to 50 m
  • RF5050: 0.2 to 25 m
  • ZRAF07K01: 0.2 to 75 m
  • ZRAF08K01: 0.2 to 100 m
  • ZRDF03K01: 0.2 to 25 m
  • ZRDF10K01: 0.2 to 50 m
  • Complementary Products: IO-Link Master, Software, Reflector, Reflector Foil, Protective Screen, Dust extraction tube
The sensors function in accordance with the time-of-flight measurement principle and are equipped with a class 1 laser and a reflector/reflector foil. The wintec, equipped with Dynamic Sensitivity technology (DS), enables a previously unattainable reception sensitivity even with very weak signals. As a result, the sensors have a very large working range of up to 100 m. The wintec also operates very reliably under adverse ambient conditions, such as in the presence of ambient light or contamination. Extensive condition monitoring functions also enable predictive maintenance and trouble-free operation. Settings are entered via the easy-to-read OLED display or via Bluetooth using the weCon app.
