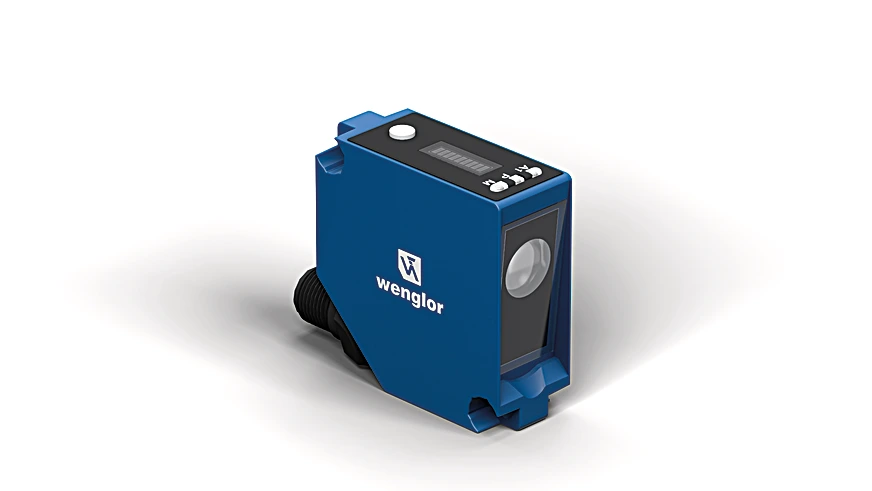

Wenglor P1PW005 Contrast Sensor

Contrast Sensor.

$568.00
Part Number
  • P1PW005
Highlights...

Features

  • Very high contrast resolution
  • Teach-in key and external teach-in

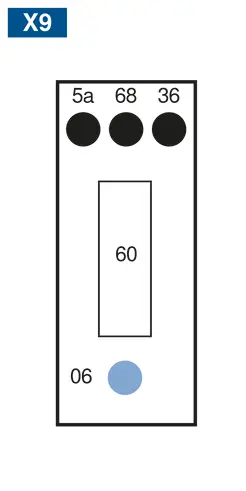

  • Innovative display unit for simple diagnosis
  • Intuitive operating concept
  • Color mode

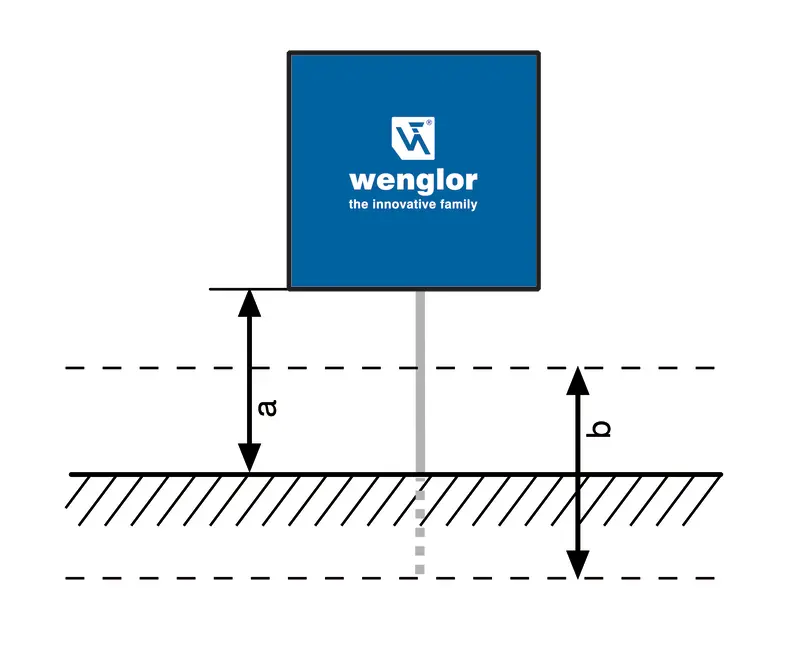

  • Working Range: 30 to 40 mm
  • Working Distance: 35 mm
  • Resolution (Gray Scale): 100
  • Switching Hysteresis: < 1 %
  • Light Source: White Light
  • Wavelength: 400 to 700 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 1.1 × 3.5 mm
  • Supply Voltage: 10 to 30 V
  • Supply Voltage with IO-Link: 18 to 30 V
  • Current Consumption (Ub = 24 V): < 50 mA
  • Switching Frequency: 50 kHz
  • Response Time: 13 µs
  • Jitter: 5 µs
  • Temperature Drift: < 6 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: 1.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Lockable: yes
  • Mode of operation: Color
  • Interface: IO-Link V1.1
  • IO-Link transmission speed: COM2
  • Protection Class: III
  • IO-Link Version: 1.1
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67

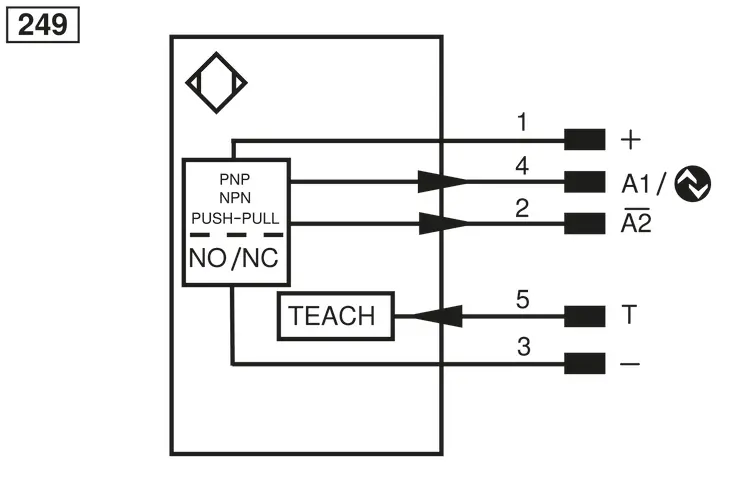

  • Connection: M12 × 1; 5-pin
  • Weight: 34 g
  • MTTFd (EN ISO 13849-1): 719.27 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • External teach-in input: yes
  • Other parameters: Off-delay, On-delay
  • Complementary Products: Software, IO-Link Master, Dust extraction tube
These contrast sensors work with a white light LED emitter and an RGB receiver. They reliably detect all color and brightness combinations between the contrast marking and the background. The intuitive operating concept with the LED bar graph display and the well-conceived functions simplify initial start-up and make the sensors suitable for flexible use. The contrast sensors can also be parameterized via IO-Link. Extensive condition monitoring functions are also available for predictive maintenance and trouble-free operation.
