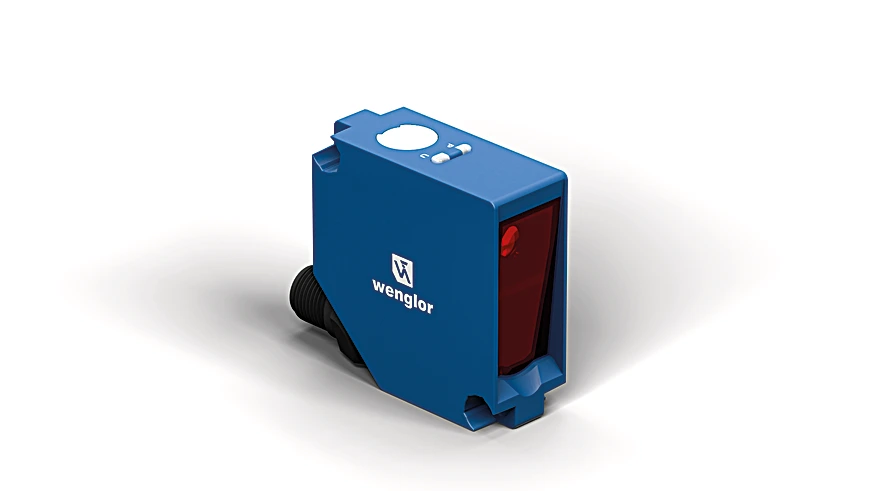

Wenglor P1PS101 Through-Beam Sensor

Through-Beam Sensor.

$91.10
Part Number
  • P1PS101
Highlights...

Features

  • Condition monitoring
  • High light intensity with large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability
  • Range: 20,000 mm
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 4 °
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 140°F
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

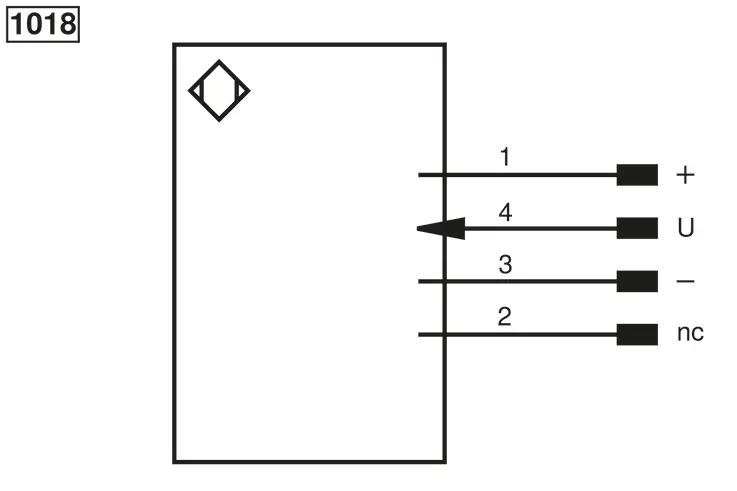

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 30 g
  • MTTFd (EN ISO 13849-1): 3,751.95 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Other parameters: Emitted light
  • Distance transmitter/receiver: 1 m, 5 m, 20 m
  • Light Spot Diameter: 80 mm, 200 mm, 800 mm
  • Complementary Products: Protective Screen, Protective housing set, Dust extraction tube
The through-beam sensor works with red light as well as a transmitter and a receiver. Thanks to their high light intensity, the sensor provides a high degree of operational reliability even with interferences like steam, fog or dust. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
