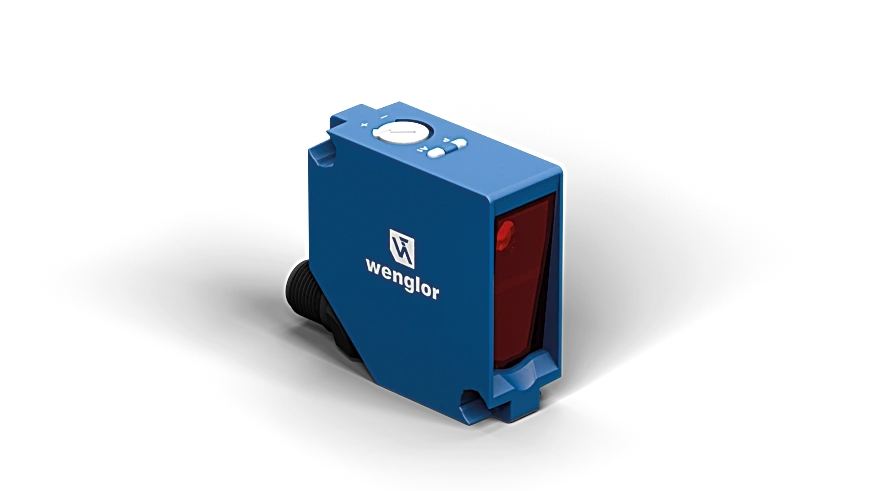

Wenglor P1PH901 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$456.00
Part Number
  • P1PH901
Highlights...

Features

  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Object detection over long distances
  • Dynamic adjustment of the emitted light brightness
  • Range: 2,500 mm
  • Setting Range: 200 to 2,500 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 40,000 Lux
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Time-of-Flight
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 200 Hz
  • Switching Frequency (interference-free mode): 40 Hz
  • Response time (interference-free mode): 13 ms
  • Response Time: 2.5 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 33 g
  • MTTFd (EN ISO 13849-1): 1,079.75 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • IO-Link: yes
  • Output: PNP
  • Circuit: NC, NO, inactive, Error output, NC+NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 250 mm, 1200 mm, 2500 mm
  • Light Spot Diameter: 20 mm, 35 mm, 70 mm
  • white (90 %): 2.5 m
  • grey (18 %): 2 m
  • black (6 %): 1.2 m
  • Complementary Products: Protective Screen
The reflex sensor with background suppression works with red light according to the time-of-flight measurement principle and is suitable for detecting objects against any background. The sensor always has the same switching distance, regardless of the color, shape or surface of the objects. The dynamic adjustment of the transmitted light brightness enables reliable switching with varying object and background properties. The sensor is suitable for presence checks with a large detection range, even under adverse ambient conditions, such as in the presence of ambient light or contamination. The IO-Link interface can be used to configure the reflex sensors (NC/NO, switching distance), as well as to output switching statuses.
