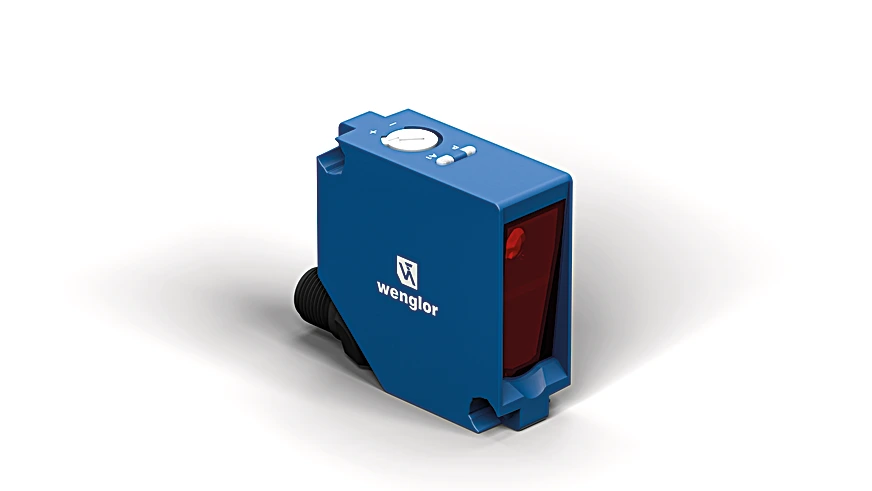

Wenglor P1PH303 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$349.00
Part Number
  • P1PH303
Highlights...

Features

  • Condition monitoring

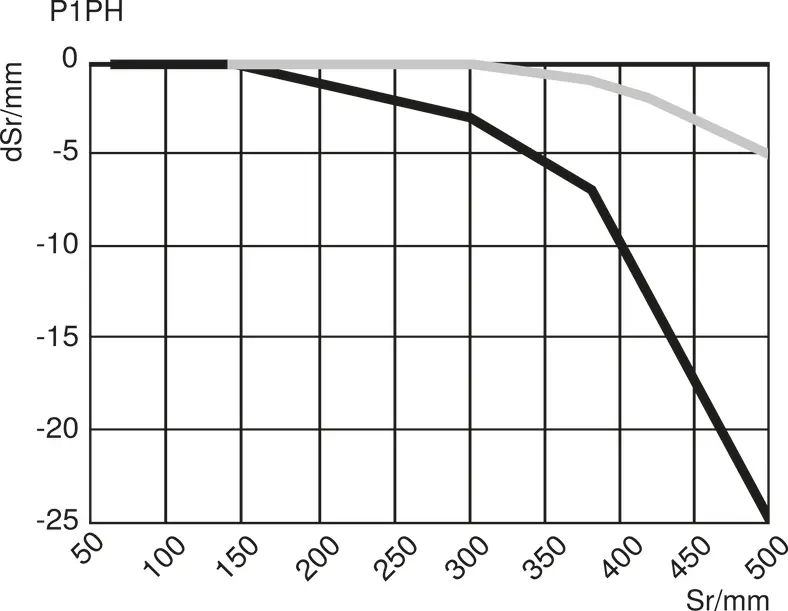

  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background
  • Range: 500 mm
  • Setting Range: 60 to 500 mm
  • Switching Hysteresis: < 3 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 15 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 800 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response time (interference-free mode): 1.5 ms
  • Response Time: 1.25 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

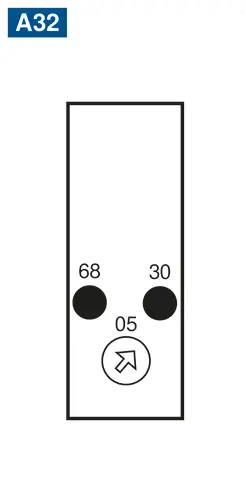

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

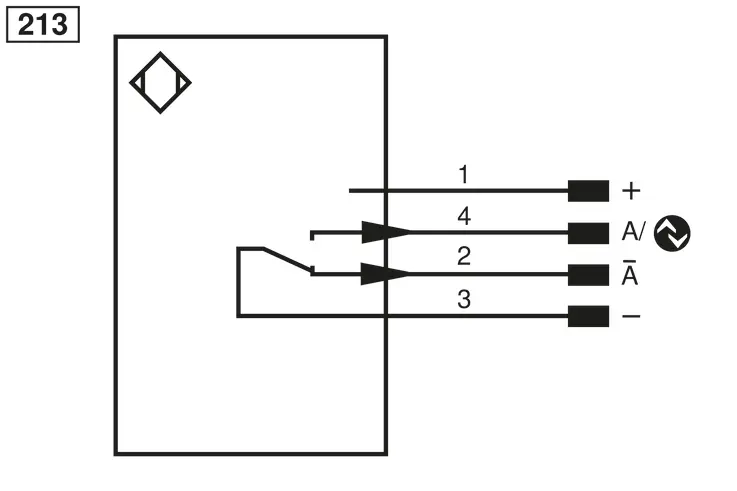

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 33 g
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • NPN NC, NPN NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, inactive, Error output, NC+NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 60 mm, 250 mm, 500 mm
  • Light Spot Diameter: 11 mm, 13 mm, 15 mm
  • Complementary Products: Protective Screen, IO-Link Master, Software, Protective housing set, Dust extraction tube
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO, switching distance) and to output switching statuses and distance values.
