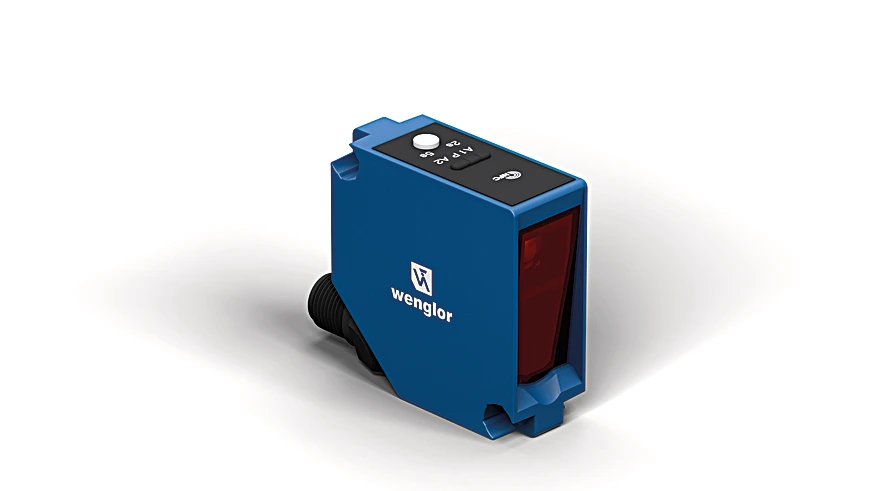

Wenglor P1PH302 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$380.00
Part Number
  • P1PH302
Highlights...

Features

  • Data storage
  • Wireless settings via NFC
  • High-end
  • IO-Link 1.1
  • Teach-in
  • Two independent switching outputs
  • Range: 500 mm
  • Setting Range: 60 to 500 mm
  • Switching Hysteresis: < 3 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 15 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 150 Hz
  • Switching Frequency (1 Switching Output): 800 Hz
  • Response Time: 3.3 ms
  • Response time (1 switching output): 1.25 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: Teach-in/NFC
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 33 g
  • MTTFd (EN ISO 13849-1): 886.3 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • NFC interface: yes

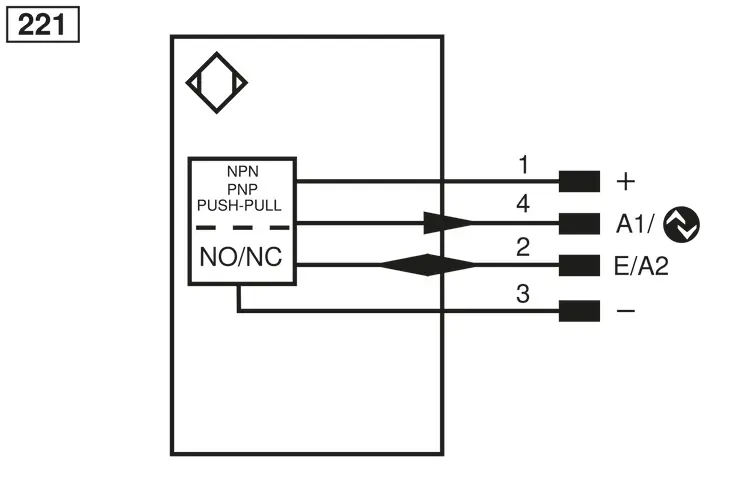

  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, NC/NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 60 mm, 250 mm, 500 mm
  • Light Spot Diameter: 11 mm, 13 mm, 15 mm
  • Complementary Products: Protective Screen, IO-Link Master, Software, Protective housing set, Dust extraction tube
The reflex sensor with background suppression works with red light according to the angle measurement principle. It has a IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The interface can also be used to configure the sensors (PNP/NPN, NC/NO, switching distance, error output), as well as for reading out switching statuses and distance values. The teach-in function also provides another configuration option. Two independent switching outputs can be used, for instance, to monitor minimum and maximum values of distances or fill levels and stack heights.
