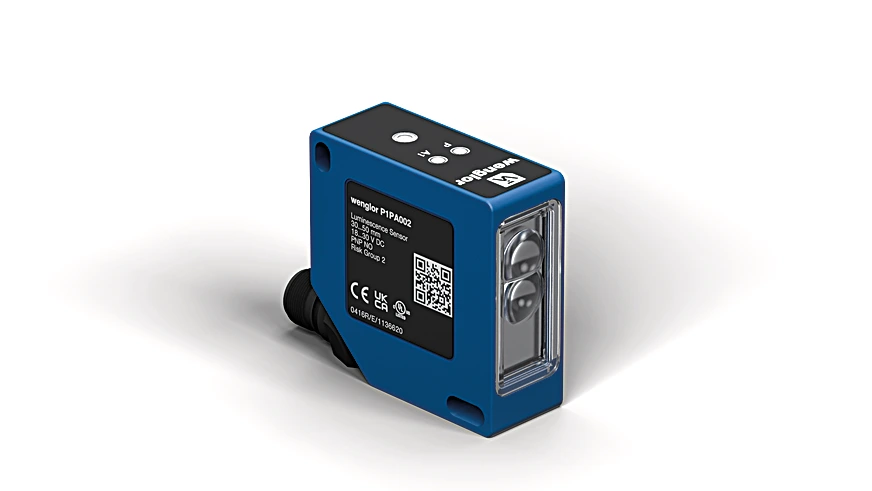

Wenglor P1PA001 Luminescence Sensor

Features

• Recognition of luminescenting marks
• Digital intensity outputs via IO-Link 1.1 interface
• Simple configuration via teach-in button or wTeach2 software
• Working Range: 30 to 90 mm
• Working Distance: 40 mm
• Receiving Range: 420 to 750 nm
• Switching Hysteresis: < 10 %
• Light Source: UV Light
• Wavelength: 375 nm
• Service Life (T = 77°F): 100,000 h
• Risk Group (EN 62471): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 25 mA
• Switching Frequency: 2,500 Hz
• Response Time: 200 µs
• On-/Off-Delay: 0 to 200 ms
• Temperature Drift: < 5 %
• Temperature Range: -13°F to 140°F
• Number of Switching Outputs: 2
• Switching Output Voltage Drop: 1.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Lockable: yes
• Teach Mode: ZT, DT
• Interface: IO-Link V1.1
• IO-Link Version: 1.1
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, ABS, Plastic, PC
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP67

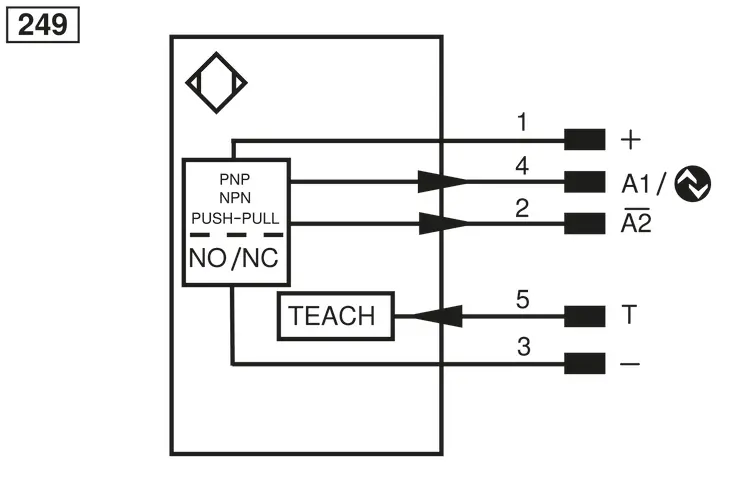

• Connection: M12 × 1; 5-pin
• Weight: 78 g
• MTTFd (EN ISO 13849-1): 2,783.39 a
• Diagnostic Coverage (DC): 0 %
• Mission Time TM (EN ISO 13849-1): 11.42 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• External teach-in input: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Other parameters: Off-delay, On-delay
• Working Distance: 30 mm, 50 mm, 90 mm
• Light Spot Diameter: 3 mm, 4 mm, 7 mm
• Complementary Products: IO-Link Master, PNP-NPN Converter BG2V1P-N-2M, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube
