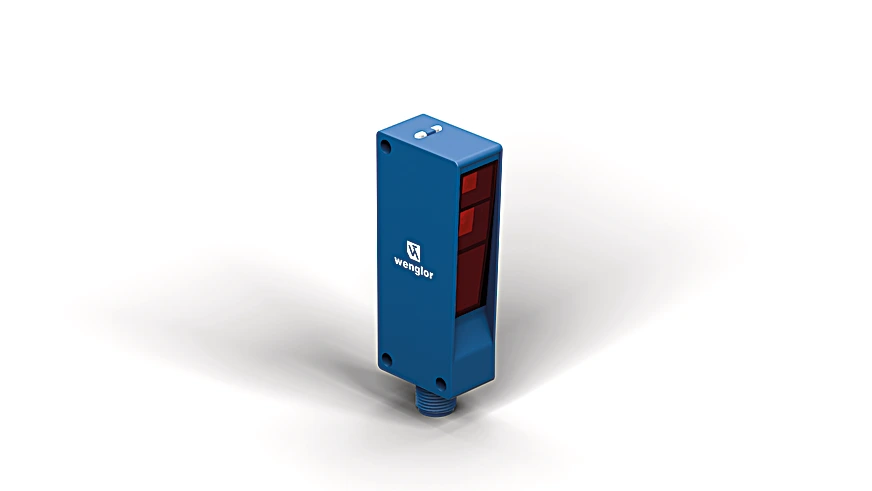

Wenglor P1NL303 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$250.00
Part Number
  • P1NL303
Highlights...

Features

  • Also suitable for glossy and reflective objects
  • Condition monitoring
  • High switching frequency
  • IO-Link 1.1
  • Range: 11,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Smallest Recognizable Part: see table 2
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optics: Two-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 2,000 Hz
  • Switching frequency (speed mode): 3,500 Hz
  • Response Time: 0.25 ms
  • Response time (speed mode): 0.14 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

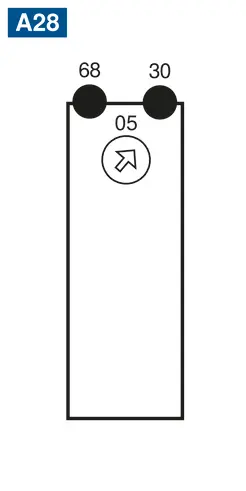

  • Setting Method: Potentiometer

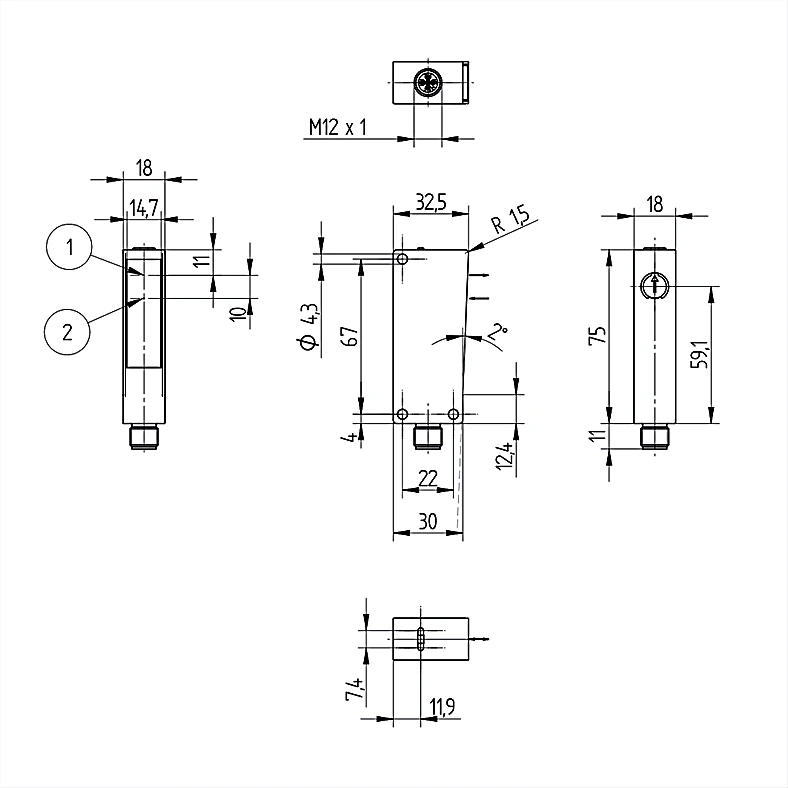

  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

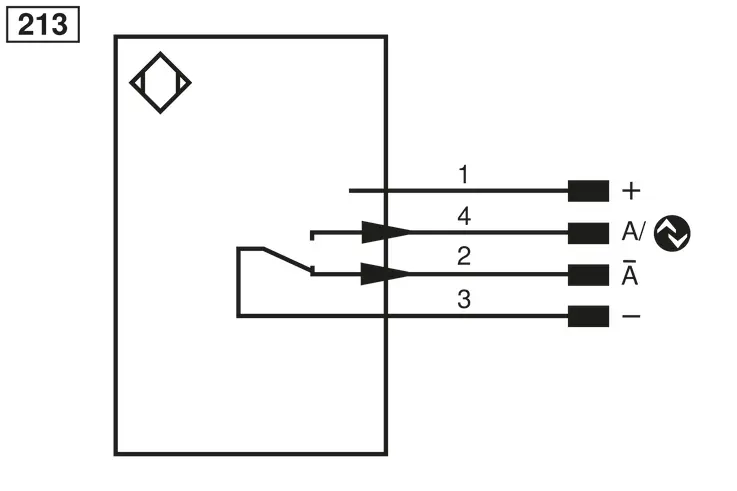

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 30 g
  • MTTFd (EN ISO 13849-1): 2,991.63 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • IO-Link: yes
  • NPN NC, NPN NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Emitted light
  • Working Distance: 2 m, 5,5 m, 11 m
  • Light Spot Diameter: 120 mm, 270 mm, 500 mm
  • RQ100BA: 0.02 to 11 m
  • RE18040BA: 0.02 to 7.6 m
  • RQ84BA: 0.04 to 10 m
  • RE9538BA: 0.05 to 4.5 m
  • RE6151BM: 0.07 to 7.5 m
  • RR50_A: 0.02 to 7 m
  • RE6040BA: 0.15 to 7.5 m
  • RE8222BA: 0.02 to 5 m
  • RR34_M: 0.1 to 5 m
  • RE3220BM: 0.1 to 3.4 m
  • RE6210BM: 0.1 to 2.5 m
  • RR25_M: 0.1 to 2.6 m
  • RR25KP: 0.1 to 2 m
  • RR21_M: 0.1 to 2.8 m
  • Z90R004: 0.15 to 3.5 m
  • Z90R005: 0.15 to 5.1 m
  • ZRAE02B01: 0.02 to 4.5 m
  • ZRME01B01: 0.1 to 1.7 m
  • ZRME03B01: 0.1 to 5 m
  • ZRMR02K01: 0.1 to 2 m
  • ZRMS02_01: 0.05 to 2.6 m
  • RF505: 0.1 to 3.3 m
  • RF508: 0.1 to 3.1 m
  • RF258: 0.1 to 3 m
  • ZRAF08K01: 0.1 to 3.3 m
  • ZRDF03K01: 0.1 to 7 m
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-03, IO-Link Master, Set Protective Housing Z1NS001, Software
The retro-reflex sensor works with red light and a reflector. It also reliably detects objects with reflective or glossy surfaces at high speeds. Thanks to its great range, the sensor can, for example, be used to manage feed and presence controls as well as to detect objects on wide feed belts. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
