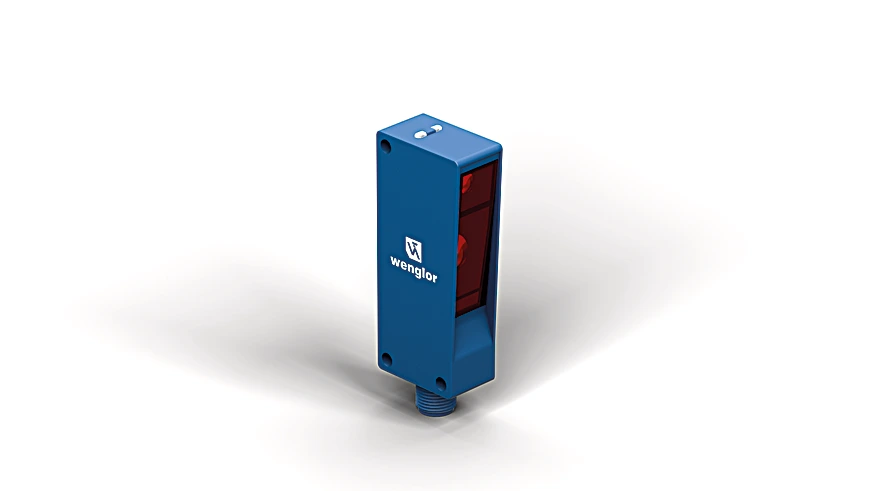

Wenglor P1NH601 Reflex Sensor with Background Suppression Mechanical

Reflex Sensor with Background Suppression Mechanical.

$423.00
Part Number
  • P1NH601
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Reliably detect objects against any background
  • Large detection range
  • Range: 1,200 mm
  • Setting Range: 100 to 1,200 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 500 Hz
  • Switching Frequency (interference-free mode): 250 Hz
  • Response time (interference-free mode): 2 ms
  • Response Time: 1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

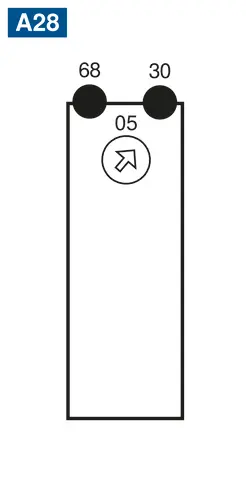

  • Setting Method: Single-turn
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 30 g
  • MTTFd (EN ISO 13849-1): 2,028.3 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, inactive, Error output, NC+NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 100 mm, 600 mm, 1200 mm
  • Light Spot Diameter: 14 mm, 18 mm, 30 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-03, IO-Link Master, Set Protective Housing Z1NS001, Software
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
