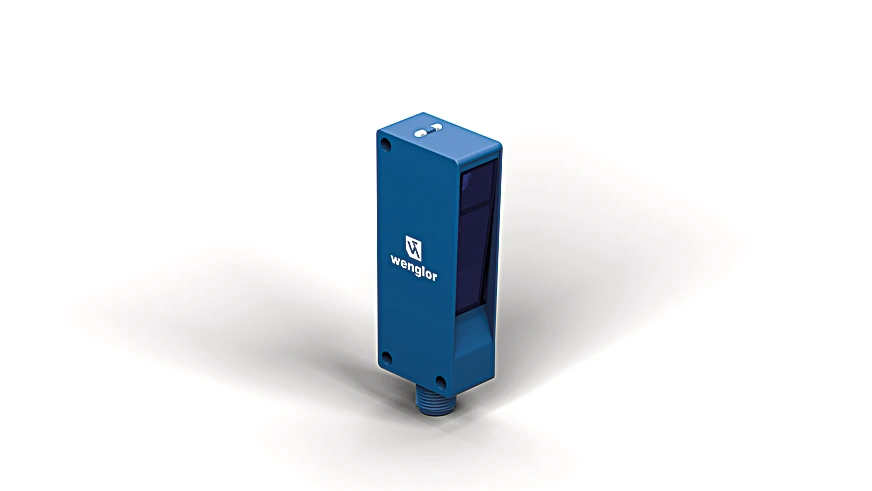

Wenglor P1NH309 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$448.00
Part Number
  • P1NH309
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Reliably detect objects against any background
  • Blue light for dark, shiny objects
  • Range: 400 mm
  • Setting Range: 50 to 400 mm
  • Switching Hysteresis: < 3 %
  • Light Source: Blue Light
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 10,000 Lux
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 15 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 800 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response time (interference-free mode): 1.5 ms
  • Response Time: 1.25 ms

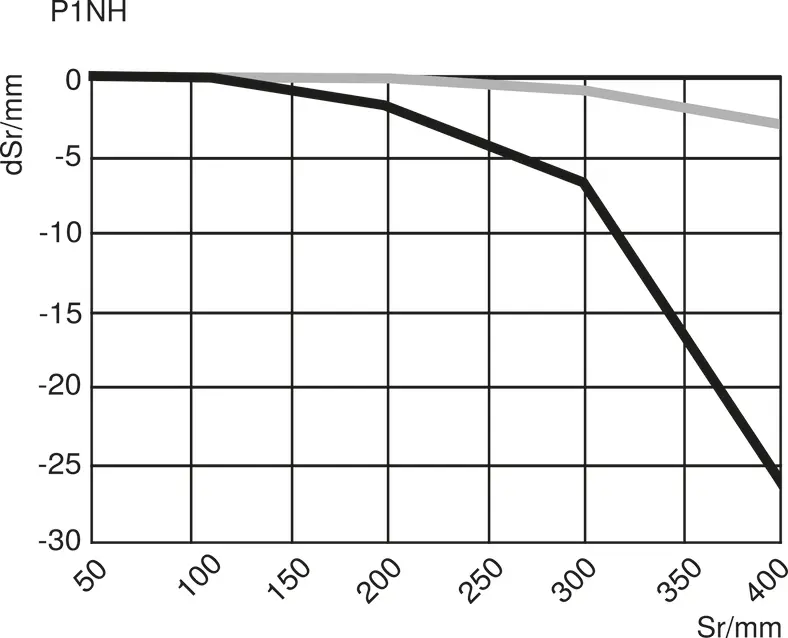

  • Temperature Drift: < 7.5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

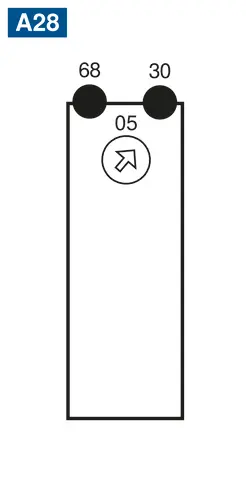

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

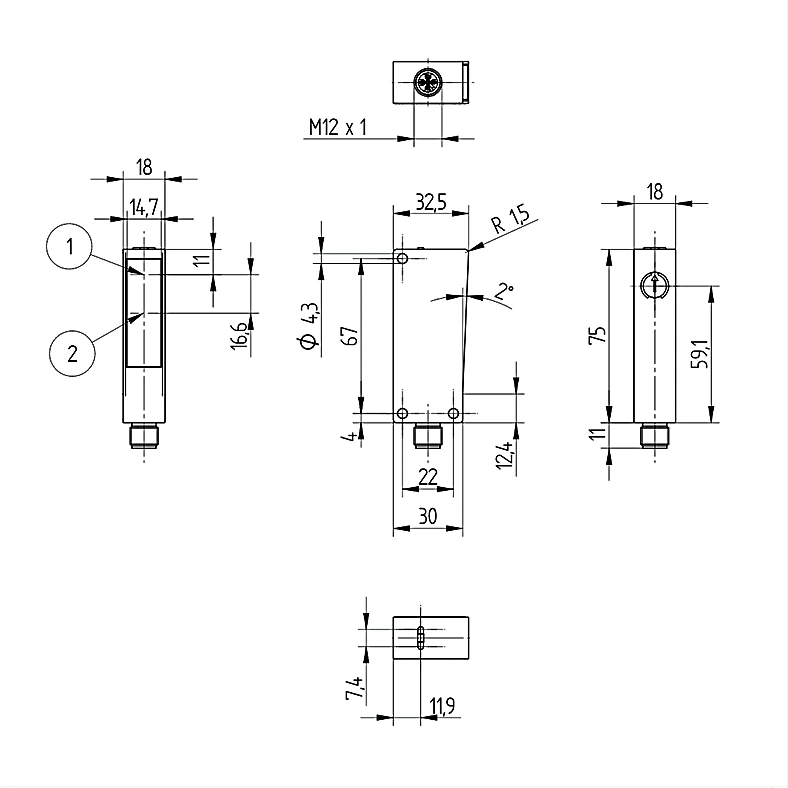

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 28 g
  • MTTFd (EN ISO 13849-1): 958.14 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, inactive, Error output, NC+NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 50 mm, 200 mm, 400 mm
  • Light Spot Diameter: 11 mm, 13 mm, 14 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-03, IO-Link Master, Set Protective Housing Z1NS001, Software
The reflex sensor with background suppression works with blue light according to the angle measurement principle and is designed to detect objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. The reflect sensor with blue light is specially designed for applications with dark shiny objects, such as when manufacturing solar wafers. The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and distance values.
