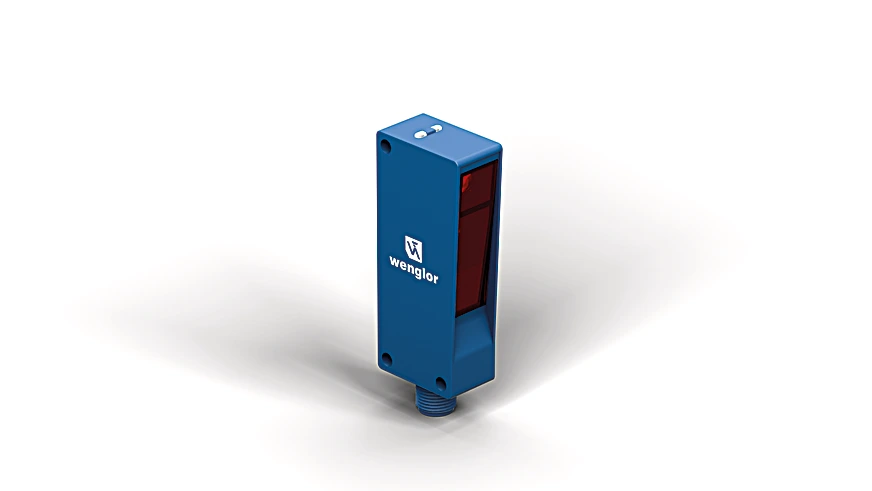

Wenglor P1NE101 Through-Beam Sensor

Features

• Condition monitoring
• High light intensity with large switching reserve
• IO-Link 1.1
• Test input for high operational reliability
• Range: 20,000 mm
• Smallest Recognizable Part: see table 1
• Switching Hysteresis: 10 %
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Optical axis: Aligned
• Switching point: Calibrated
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Supply Voltage with IO-Link: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 1,000 Hz
• Switching Frequency (interference-free mode): 500 Hz
• Response Time: 0.5 ms
• Response time (interference-free mode): 1 ms
• Temperature Drift: < 10 %
• Temperature Range: -40°F to 140°F
• Switching Output Voltage Drop: < 2 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Interface: IO-Link V1.1
• Protection Class: III

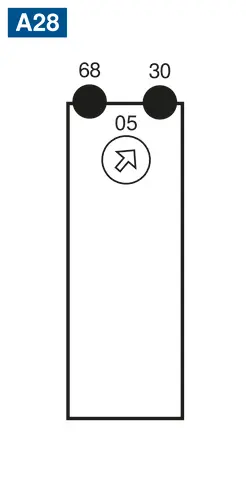

• Setting Method: Potentiometer
• Housing Material: Plastic, ABS/PC
• Degree of Protection: IP67, IP68
• Connection: M12 × 1; 4-pin
• Optic Cover: Plastic, PMMA
• Weight: 30 g
• MTTFd (EN ISO 13849-1): 1,688.43 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NC, PNP NO: yes
• IO-Link: yes
• Output: Push-pull, NPN, PNP
• Circuit: inactive, Error output, NC, NC+NO, NO
• Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point
• Distance transmitter/receiver: 4 m, 10 m, 20 m
• Smallest Recognizable Part: 6 mm, 2 mm, 2,5 mm
• Complementary Products: Dust Extraction Tube STAUBTUBUS-03, IO-Link Master, Set Protective Housing Z1NS001, Software
