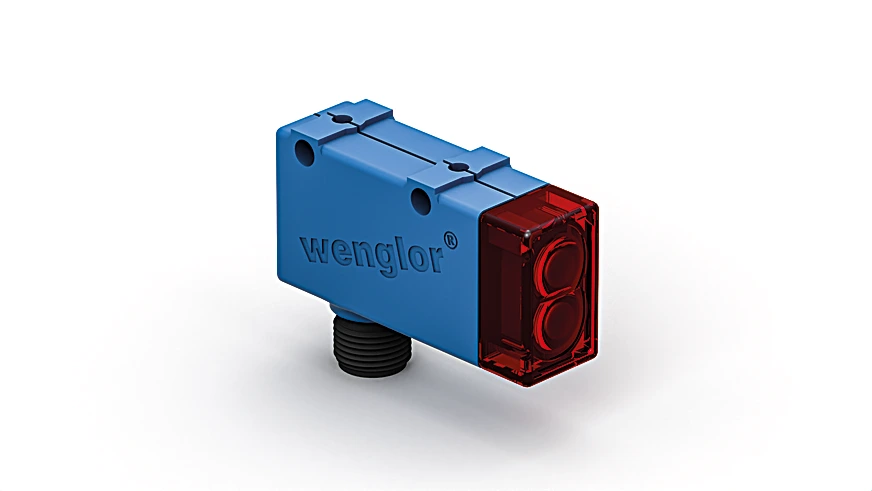

Wenglor P1MM001 Reflex Light Barrier

Features

• Compact housing
• Teach-in, external teach-in
• Dynamic readjustment of the switching threshold
• Recognition of semi-transparent objects
• Range: 500 mm
• Reference Background: Stainless Steel
• Switching Hysteresis: < 5 %
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 3 °
• Light Spot Diameter: see table 1
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 500 Hz
• Response Time: 1 ms
• Temperature Drift: < 5 %
• Temperature Range: -40°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Teach Mode: HT
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67

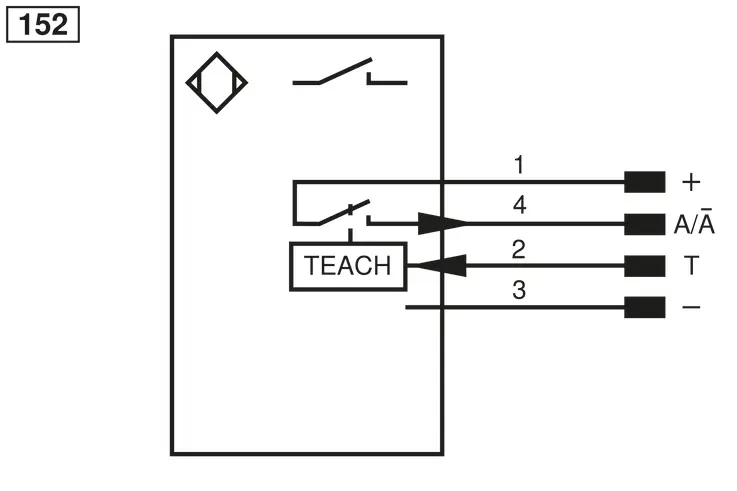

• Connection: M12 × 1; 4-pin
• Weight: 28 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NC: yes
• Circuit: NC, NC/NO, NO
• Range: 0 mm, 250 mm, 500 mm
• Light Spot Diameter: 7 mm, 35 mm, 50 mm
• white (90 %): 30 to 200 mm
• grey (18 %): 30 to 150 mm
• black (6 %): 30 to 100 mm
• Stainless Steel: 30 to 500 mm
• Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
