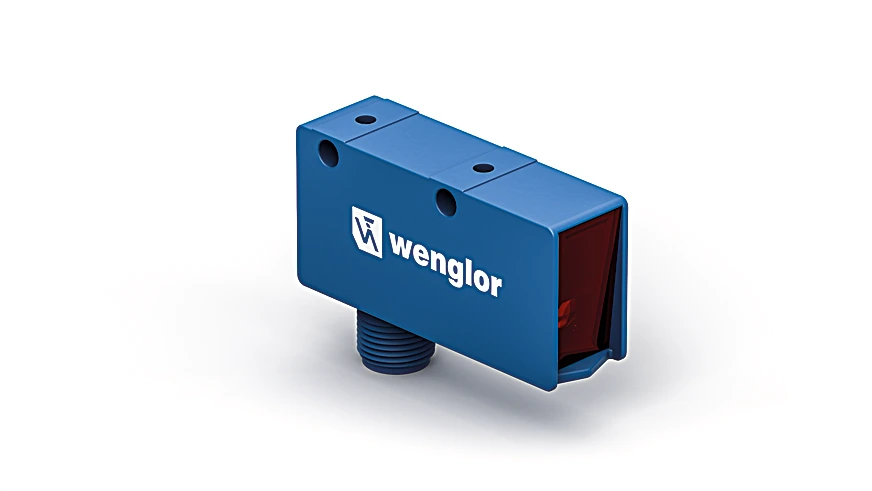

Wenglor P1ML203 Retro-Reflex Sensor Universal

Features

• Condition monitoring
• High switching frequency
• IO-Link 1.1
• Collimated laser light beam
• Range: 20,000 mm
• Reference Reflector/Reflector Foil: RE6151BM
• Smallest Recognizable Part: see table 2
• Switching Hysteresis: < 10 %
• Light Source: Laser collimated (red)
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 1
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Optics: Two-Lens Optic
• Optical axis: Aligned
• Switching point: Calibrated
• Supply Voltage: 10 to 30 V DC
• Supply Voltage with IO-Link: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 2,000 Hz
• Switching frequency (speed mode): 3,500 Hz
• Response Time: 0.25 ms
• Response time (speed mode): 0.14 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Interface: IO-Link V1.1
• Protection Class: III
• FDA Accession Number: 2310971-001

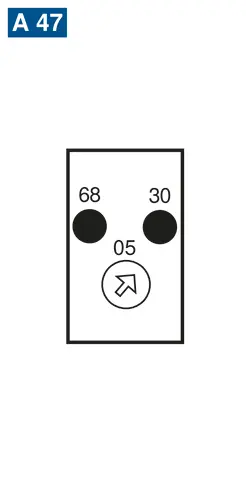

• Setting Method: Potentiometer
• Housing Material: Plastic, ABS-GF
• Degree of Protection: IP67, IP68

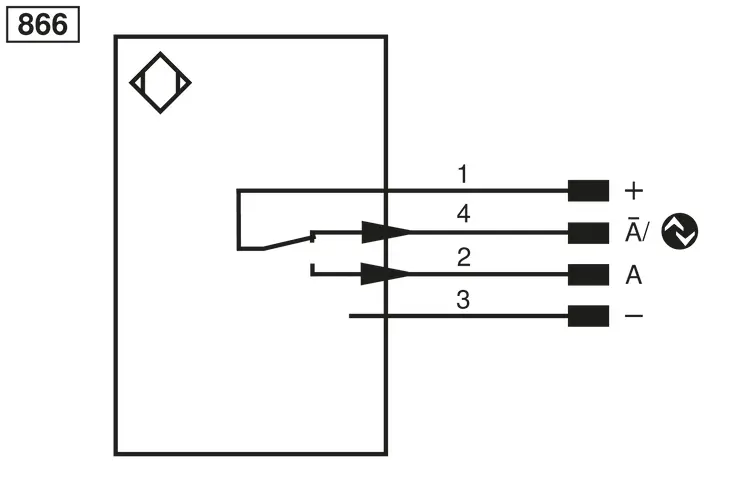

• Connection: M12 × 1; 4-pin
• Optic Cover: Plastic, PMMA
• Weight: 16 g
• MTTFd (EN ISO 13849-1): 2,268.09 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• IO-Link: yes
• PNP NC, PNP NO: yes
• Output: Push-pull, NPN, PNP
• Circuit: inactive, Error output, NC, NC+NO, NO
• Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
• Working Distance: 3 m, 10 m, 20 m
• Light Spot Diameter: 20 mm, 50 mm, 80 mm
• RQ100BA: 0.4 to 27 m
• RE18040BA: 0.25 to 19 m
• RQ84BA: 0.25 to 22 m
• RR84BA: 0.25 to 25 m
• RE9538BA: 0.25 to 10 m
• RE6151BM: 0.2 to 20 m
• RR50_A: 0.25 to 21 m
• RE6040BA: 0.2 to 22 m
• RE8222BA: 0.3 to 14 m
• RE3220BM: 0.3 to 12 m
• RE6210BM: 0.25 to 6.5 m
• RR25_M: 0.2 to 10 m
• RR25KP: 0.2 to 4.5 m
• RR21_M: 0.2 to 6 m
• ZRAE02B01: 0.2 to 12 m
• ZRME01B01: 0.2 to 4 m
• ZRME03B01: 0.2 to 12 m
• ZRMR02K01: 0.2 to 5 m
• RF505: 0.25 to 4.5 m
• RF508: 0.25 to 4 m
• RF258: 0.2 to 4 m
• ZRAF08K01: 0.2 to 4.5 m
• Complementary Products: Reflector, Reflector Foil, IO-Link Master, Software
