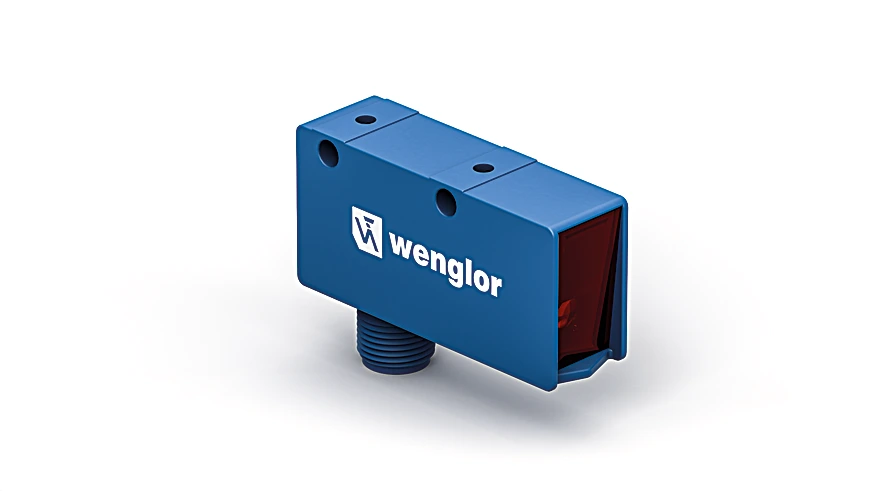

Wenglor P1MH201 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$313.00
Part Number
  • P1MH201
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Laser class 1
  • High switching frequency
  • Range: 200 mm
  • Setting Range: 30 to 200 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1,600 Hz
  • Switching Frequency (interference-free mode): 900 Hz
  • Response time (interference-free mode): 0.6 ms
  • Response Time: 0.31 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 2310152-000

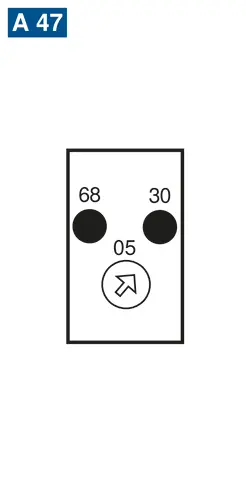

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67, IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 16 g
  • MTTFd (EN ISO 13849-1): 1,664.58 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: inactive, Error output, NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • Detection Range: 30 mm, 100 mm, 200 mm
  • Light Spot Diameter: 2 mm, 1,5 mm, 1,5 mm
  • Complementary Products: IO-Link Master, Software
The reflex sensor with background suppression works with laser light according to the angle measurement principle and is designed to detect objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Thanks to the fine laser beam, even small parts can be reliably detected. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
