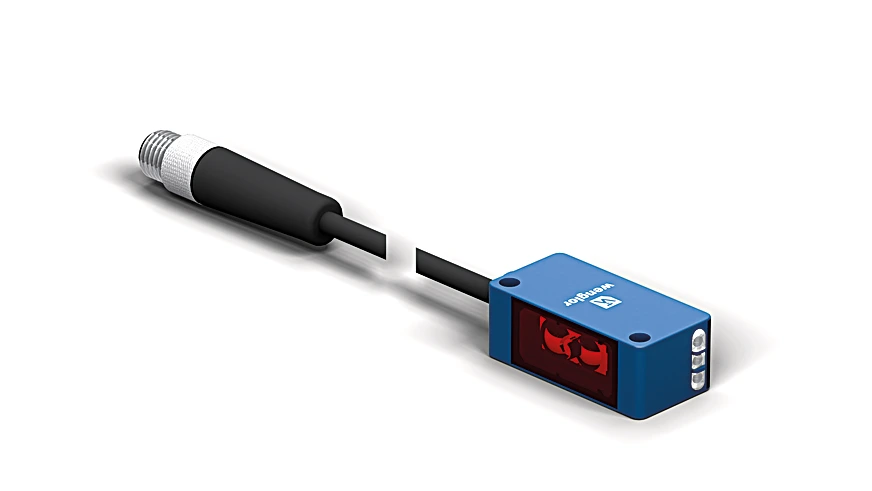

Wenglor P1KY105 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$410.00
Part Number
  • P1KY105
Highlights...

Features

  • Miniature design
  • 2 mutually independent switching outputs
  • IO-Link interface
  • Large working range
  • Working Range: 0 to 1,500 mm
  • Setting Range: 50 to 1,500 mm
  • Switching Hysteresis: < 30 mm
  • Light Source: Laser (infrared)
  • Wavelength: 940 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 10 Hz
  • Response Time: < 36 ms
  • Temperature Drift: < 2.5 %
  • Temperature Range: -40°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 1620293-003
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS/PC, Plastic, PC
  • Cable Jacket Material: Plastic, PUR
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67, IP68

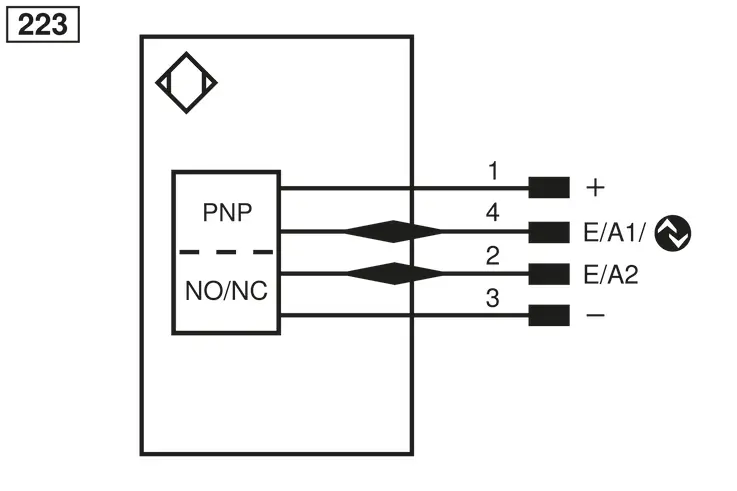

  • Connection: M8 × 1; 4-pin
  • Cable length (L): 200 mm
  • Weight: 13 g
  • MTTFd (EN ISO 13849-1): 2,266.52 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Circuit: NC, NO
  • Other parameters: Off-delay, On-delay, Hysteresis, Emitted light, Teach mode, Switching point
  • Working Distance: 350 mm, 700 mm, 1500 mm
  • Light Spot Diameter: 14 mm, 25 mm, 42 mm
  • Complementary Products: IO-Link Master, Software
The high-performance distance sensor with compact format accurately determines distance between the sensor and the object on the basis of transit time measurement. Two mutually independent switching outputs and the intelligent IO-Link interface permit multifunctional use for precisely ascertaining distance to an object, or for detecting the object at any two switching points. A large working range of 0 to 1,500 mm ensures top performance with a miniature format and flexibility where range is concerned. Thanks to laser class 1, the sensor's laser beam is harmless for the human eye.
