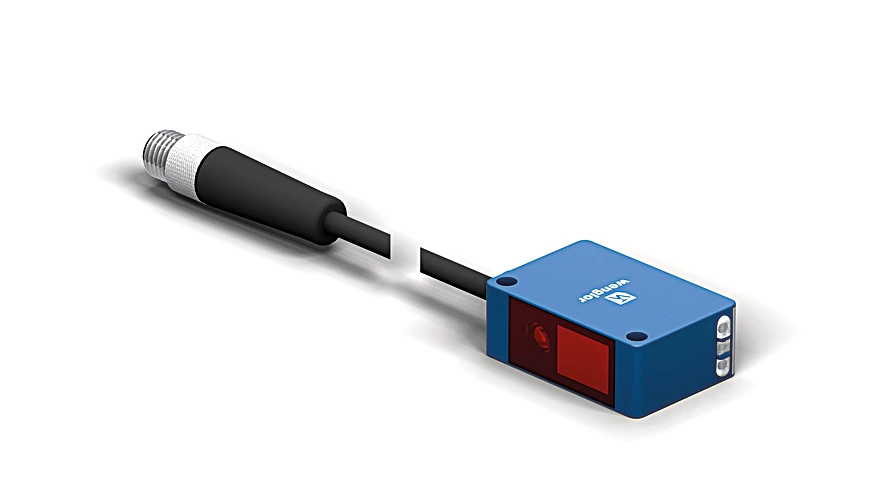

Wenglor P1KY014 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$659.00
Part Number
  • P1KY014
Highlights...

Features

  • Secure detection of black objects also in extremely inclined positions with wintec
  • No mutual interference with wintec
  • Interference-free towards gloss in the background with wintec
  • Reliable in case of glossy objects with wintec
  • Miniature design
  • 2 mutually independent switching outputs
  • Working Range: 0 to 1,000 mm
  • Setting Range: 100 to 1,000 mm
  • Switching Hysteresis: < 20 mm
  • Light Source: Laser (red)
  • Wavelength: 680 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 16 mrad
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Triple Dot Laser: yes
  • Reflector required: no
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Temperature Drift (14°F < Tu ≤ 122°F): < 2 %
  • Temperature Drift (-40°F < Tu ≤ 122°F): < 3 %
  • Temperature Range: -40°F to 122°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 1620293-001
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS/PC, Plastic, PC
  • Cable Jacket Material: Plastic, PUR
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67

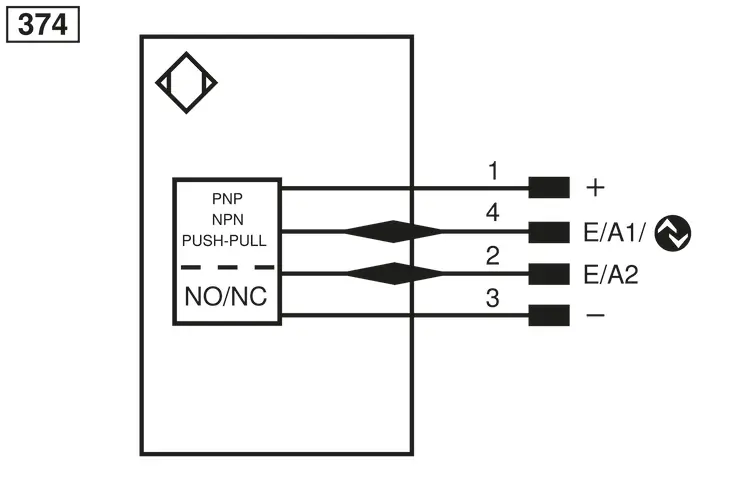

  • Connection: M8 × 1; 4-pin
  • Cable length (L): 200 mm
  • Weight: 15 g
  • MTTFd (EN ISO 13849-1): 1,021.76 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • IO-Link: yes
  • Circuit: NC, NO, inactive, Error output, NC+NO
  • Other parameters: Off-delay, On-delay, Hysteresis, Emitted light, Teach mode, Switching point
  • Working Distance: 100 mm, 500 mm, 1000 mm
  • Light Spot Diameter: 4 mm, 7 mm, 15 mm
  • Complementary Products: IO-Link Master, Software
These miniature sensors determine distance between the sensor and the object by means of transit time measurement. wenglor's interference-free technology (wintec) is revolutionizing sensor technology: it prevents numerous sensors arranged directly opposite or next to each other from interfering with one another. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
