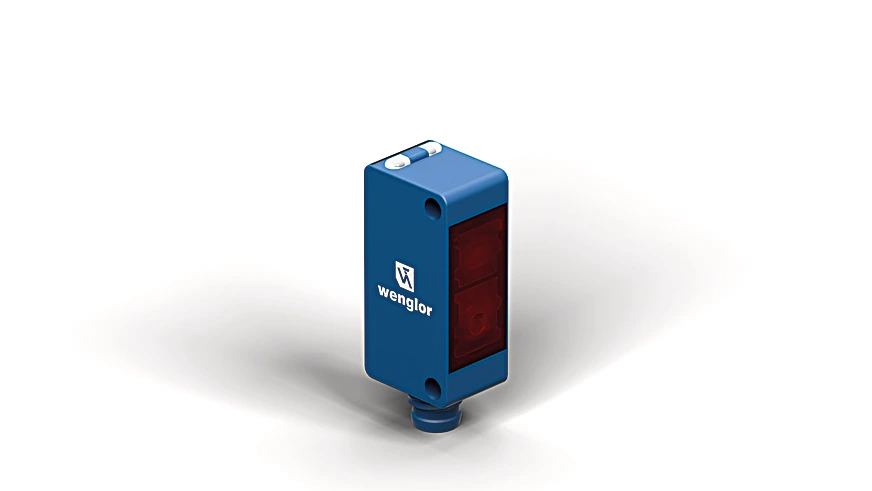

Wenglor P1KT002 Reflex Sensor Energetic

Reflex Sensor Energetic.

$276.00
Part Number
  • P1KT002
Highlights...

Features

  • Condition monitoring
  • Detection of objects with variable position
  • IO-Link 1.1
  • Red light line for perforated or stamped objects
  • Range: 100 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Red Light (Line)
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Energetic
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 500 Hz
  • Switching frequency (speed mode): 750 Hz
  • Response time (speed mode): 0.67 ms
  • Response Time: 1 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection: M8 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 6 g
  • MTTFd (EN ISO 13849-1): 1,718.95 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Switching point, Emitted light
  • Detection Range: 30 mm, 65 mm, 100 mm
  • Light Spot Diameter: 10 x 35 mm, 11 x 70 mm, 12 x 100 mm
  • Complementary Products: IO-Link Master, Software
The reflex sensor makes use of a red light line in accordance with the energetic principle and is suitable for detecting objects without any background. It's suitable for reliable detection of objects with stamped or perforated surfaces such as PCBs and perforated sheet metal. Furthermore, objects can be detected on the light line regardless of position. The IO-Link interface can be used to configure the reflex sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and distance values.
