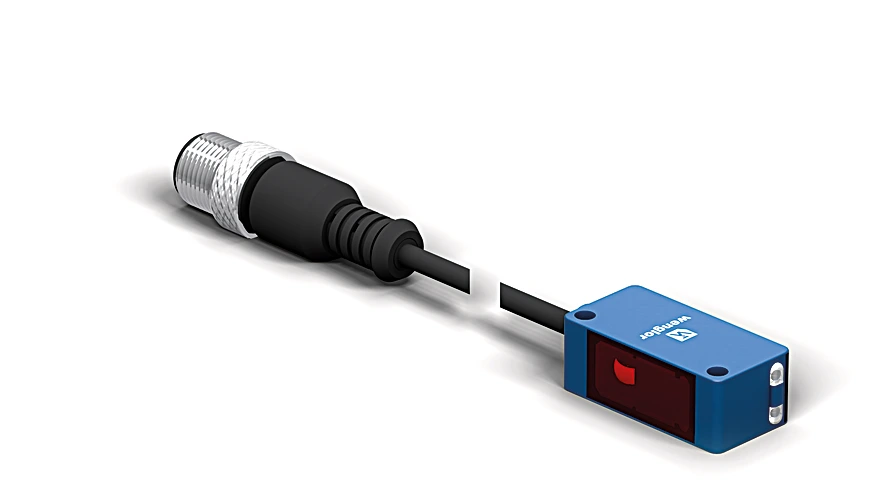

Wenglor P1KS006 Through-Beam Sensor

Through-Beam Sensor.

$273.00
Part Number
  • P1KS006
Highlights...

Features

  • Very high switching frequency
  • Test input for high operational reliability
  • IO-Link 1.1
  • Detect extremely small parts starting at 1 mm
  • Range: 10,000 mm
  • Light Source: Laser (red)
  • Wavelength: 680 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Light Spot Diameter: see table 1
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Temperature Drift (14°F < Tu < 104°F): 10 % *
  • Temperature Range: -40°F to 122°F
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • FDA Accession Number: 1710976-001
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

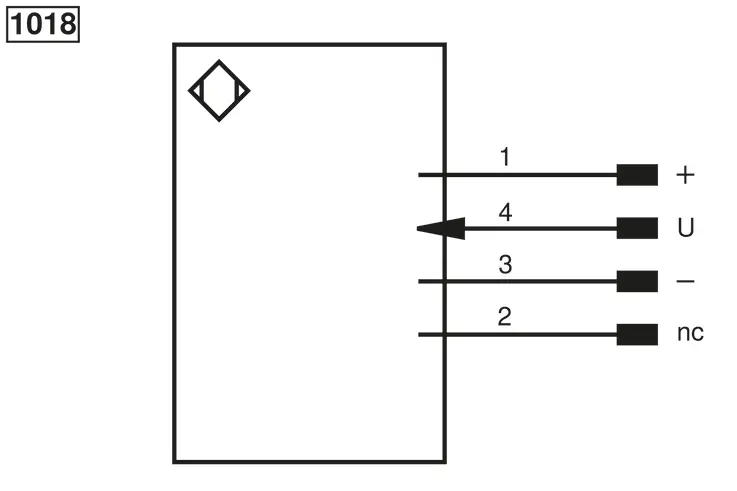

  • Connection: M12 × 1; 4-pin
  • Cable length (L): 200 mm
  • Cable Jacket Material: Plastic, PUR
  • Optic Cover: Plastic, PMMA
  • Weight: 35 g
  • MTTFd (EN ISO 13849-1): 2,993.84 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Other parameters: Emitted light
  • Working Distance: 1 m, 6 m, 10 m
  • Light Spot Diameter: 2,5 mm, 25 mm, 40 mm
The through-beam sensor works with a fine laser beam as well as a transmitter and a receiver. The collimated laser beam of laser class 1 detects objects, for instance, when conducting installation, feed or presence controls, starting at a size of just 1.0 millimeters. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
