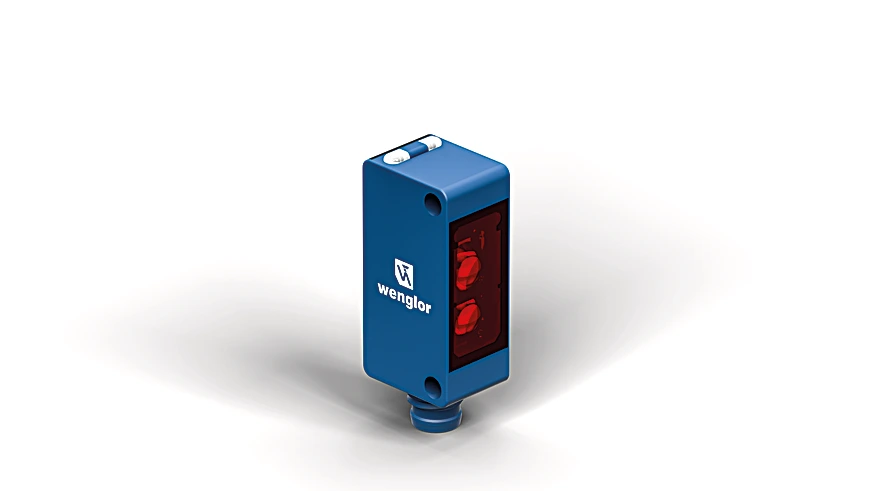

Wenglor P1KL024 Retro-Reflex Sensor Universal

Features

• Also suitable for glossy and reflective objects
• Condition monitoring
• High switching frequency
• IO-Link 1.1
• Crossover optics, 0.7° direction of receiver
• Range: 3,000 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Switching Hysteresis: < 10 %
• Light Source: Red Light
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Optics: Two-Lens Optic
• Optical axis: Aligned
• Switching point: Calibrated
• Supply Voltage: 10 to 30 V DC
• Supply Voltage with IO-Link: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 2,000 Hz
• Switching frequency (speed mode): 3,500 Hz
• Response Time: 0.25 ms
• Response time (speed mode): 0.14 ms
• Temperature Drift: < 10 %
• Temperature Range: -40°F to 140°F
• Switching Output Voltage Drop: < 2 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Interface: IO-Link V1.1
• Protection Class: III
• Setting Method: Potentiometer
• Housing Material: Plastic, ABS/PC
• Degree of Protection: IP67, IP68
• Connection: M8 × 1; 4-pin
• Optic Cover: Plastic, PMMA
• Weight: 6 g
• MTTFd (EN ISO 13849-1): 2,808.97 a
• Scope of delivery: 1 × BEF-SET-01 mounting set, 1 × initial start-up instructions, 1 × sensor
• IO-Link: yes
• PNP NC, PNP NO: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NO, inactive, Error output, NC+NO
• Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Emitted light, Switching point
• External Information: Angled optics, 0.7° toward receiver
• Working Distance: 0,15 m, 0,2 m, 2 m
• Light Spot Diameter: 32 mm, 40 mm, 260 mm
• Complementary Products: Reflector, Reflector Foil, IO-Link Master, Software
