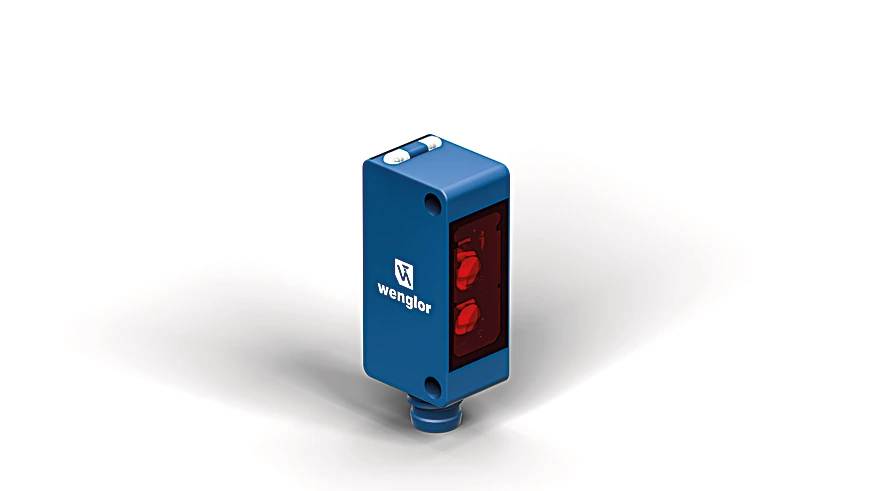

Wenglor P1KL018 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$299.00
Part Number
  • P1KL018
Highlights...

Features

  • Condition monitoring
  • High switching frequency
  • IO-Link 1.1
  • Focused optics
  • Detect extremely small parts starting at 0.15 mm
  • Range: 3,000 mm
  • Reference Reflector/Reflector Foil: RE6151BM
  • Smallest Recognizable Part: 0.15 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser focused (red)
  • Wavelength: 680 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.5 mm
  • Focus Distance: 180 to 220 mm
  • Optics: Two-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 2,000 Hz
  • Switching frequency (speed mode): 4,000 Hz
  • Response Time: 0.25 ms
  • Response time (speed mode): 0.125 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 122°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 1710976-001
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

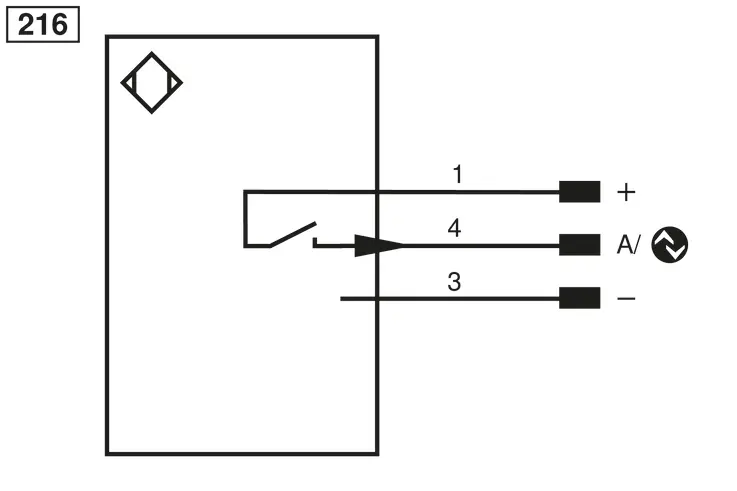

  • Connection: M8 × 1; 3-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 27 g
  • MTTFd (EN ISO 13849-1): 2,617.62 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • IO-Link: yes
  • PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, NC/NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Emitted light, Switching point
  • Working Distance: 0,1 m, 1 m, 3 m
  • Light Spot Diameter: 1 mm, 8 mm, 28 mm
  • RQ100BA: 0.4 to 3 m
  • RE18040BA: 0.4 to 3 m
  • RQ84BA: 0.4 to 3 m
  • RR84BA: 0.4 to 3 m
  • RE9538BA: 0.4 to 2.4 m
  • RE6151BM: 0.35 to 3 m
  • RR50_A: 0.4 to 3 m
  • RE6040BA: 0.4 to 3 m
  • RE8222BA: 0.4 to 3 m
  • RR34_M: 0.35 to 3 m
  • RE3220BM: 0.35 to 2 m
  • RE6210BM: 0.35 to 1.9 m
  • RR25_M: 0.35 to 2.2 m
  • RR25KP: 0.35 to 0.9 m
  • RR21_M: 0.35 to 2 m
  • Z90R004: 0.15 to 1.5 m
  • Z90R005: 0.15 to 2.3 m
  • ZRAE02B01: 0.4 to 2.5 m
  • ZRME01B01: 0.35 to 1.2 m
  • ZRME03B01: 0.35 to 1.7 m
  • ZRMR02K01: 0.35 to 1.5 m
  • ZRMS02_01: 0.35 to 1.9 m
  • RF505: 0.35 to 1.2 m
  • RF508: 0.35 to 1.1 m
  • RF258: 0.35 to 1.1 m
  • ZRDF03K01: 0.3 to 3 m
  • ZRDF10K01: 0.3 to 3 m
  • Complementary Products: Reflector, Reflector Foil, IO-Link Master, Software
The retro-reflex sensor works with a fine laser beam and a reflector. The focused laser class 1 laser beam detects objects, for instance, during installation, feed or presence checks, starting at a size of 0.25 mm over the entire range. The IO-Link interface can be used to configure retro-reflex sensors (PNP/NPN, NC/NO, switching distance) and to output switching statuses and signal values.
