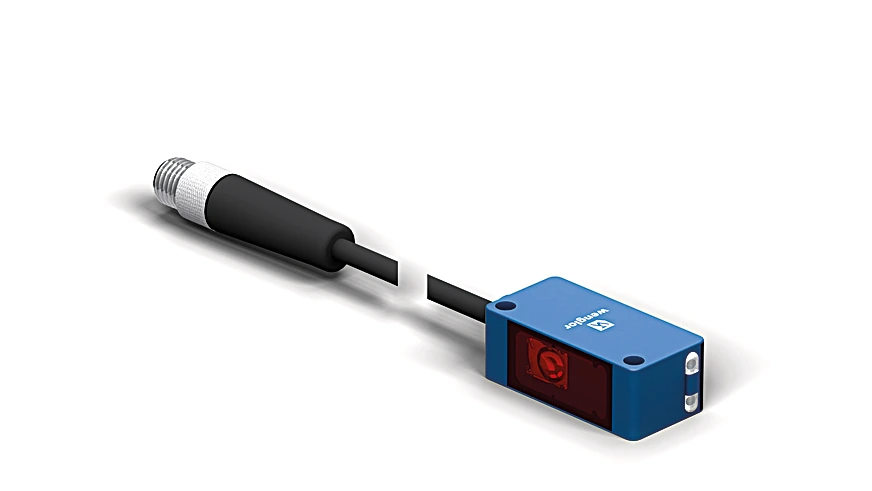

Wenglor P1KK007 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$281.00
Part Number
  • P1KK007
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Special for glass, PET and films
  • No blind spot from single-lens optics
  • Range: 1,500 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Clear Glass Recognition: yes
  • Smallest Recognizable Part: see table 2
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optics: Single-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 2,000 Hz
  • Switching frequency (speed mode): 3,500 Hz
  • Response Time: 0.25 ms
  • Response time (speed mode): 0.14 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection: M8 × 1; 4-pin
  • Cable length (L): 200 mm
  • Cable Jacket Material: Plastic, PUR
  • Optic Cover: Plastic, PMMA
  • Weight: 6 g
  • MTTFd (EN ISO 13849-1): 2,414 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • IO-Link: yes
  • PNP NC, PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: inactive, Error output, NC, NC+NO, NO
  • Other parameters: Mode of operation, Hysteresis, Switching point, Off-delay, On-delay
  • Working Distance: 0,2 m, 1 m, 1,5 m
  • Light Spot Diameter: 20 mm, 90 mm, 130 mm
  • RQ100BA: 0 to 1.5 m
  • RE18040BA: 0 to 1.5 m
  • RQ84BA: 0 to 1.5 m
  • RR84BA: 0 to 1.5 m
  • RE9538BA: 0 to 0.7 m
  • RE6151BM: 0 to 1.3 m
  • RR50_A: 0 to 1.5 m
  • RE6040BA: 0 to 1.4 m
  • RE8222BA: 0 to 1 m
  • RR34_M: 0 to 1 m
  • RE3220BM: 0 to 0.6 m
  • RE6210BM: 0 to 0.6 m
  • RR25_M: 0 to 0.7 m
  • RR25KP: 0 to 0.25 m
  • RR21_M: 0 to 0.6 m
  • Z90R004: 0 to 0.07 m
  • Z90R005: 0 to 1.1 m
  • ZRAE02B01: 0 to 0.6 m
  • ZRME01B01: 0 to 0.25 m
  • ZRME03B01: 0 to 0.65 m
  • ZRMR02K01: 0 to 0.4 m
  • ZRMS02_01: 0 to 0.55 m
  • RF505: 0 to 0.5 m
  • RF508: 0 to 0.5 m
  • RF258: 0 to 0.45 m
  • ZRDF03K01: 0 to 1.1 m
  • ZRDF10K01: 0 to 1.2 m
  • Complementary Products: Reflector, Reflector Foil, IO-Link Master, Software
The retro-reflex sensor for transparent objects works with red light and a reflector. Where conventional retro-reflex light barriers reach their limits, this retro-reflective barrier for clear glass recognition ensures that extremely shiny objects like glass, PET bottles, trays or film can be detected. Via the single-lens optic without blind spots, the sensor can detect objects even through small holes and gaps. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
