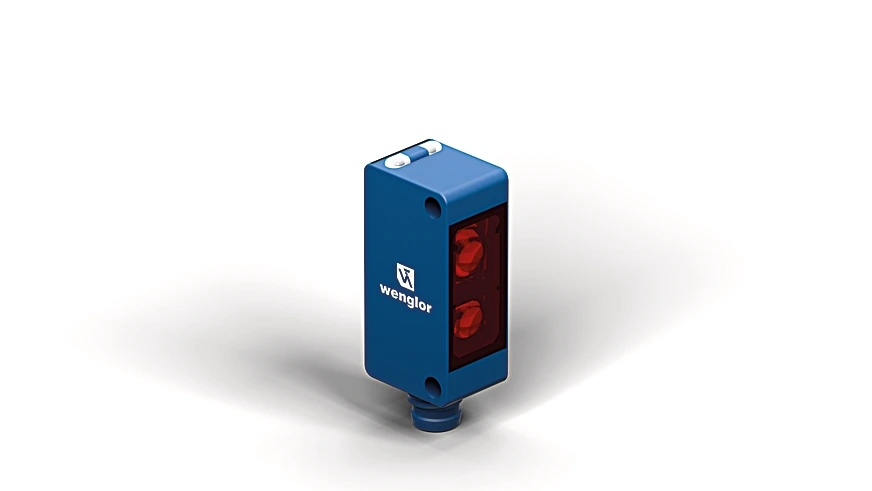

Wenglor P1KH008C01 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$312.00
Part Number
  • P1KH008C01
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Detect extremely small parts starting at 0.1 mm
  • Laser class 1
  • Range: 120 mm
  • Setting Range: 30 to 120 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Wavelength: 680 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 1,000 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response time (interference-free mode): 1 ms
  • Response Time: 0.5 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 122°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 1710976-004
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

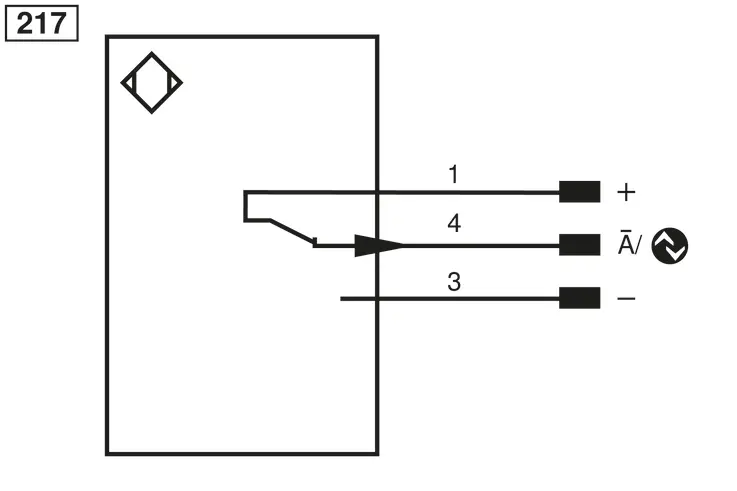

  • Connection: M8 × 1; 3-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 6 g
  • MTTFd (EN ISO 13849-1): 1,647.45 a
  • Scope of delivery: 1 × BEF-SET-01 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • External Information: On-Delay: 50 ms, Range: 100 mm
  • Detection Range: 40 mm, 80 mm, 120 mm
  • Light Spot Diameter: 2,5 mm, 1,5 mm, 1 mm
  • Complementary Products: IO-Link Master, Software
The reflex sensor with background suppression works with laser light according to the angle measurement principle and is designed to detect objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. The fine laser beam means that even the smallest parts, starting at 0.1 mm in size, can be reliably detected. The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and distance values.
