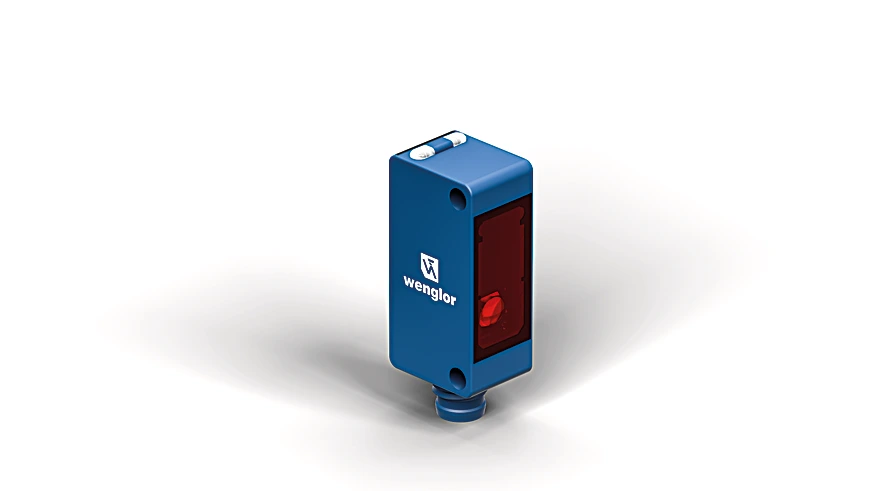

Wenglor P1KE010 Through-Beam Sensor

Through-Beam Sensor.

$267.00
Part Number
  • P1KE010
Highlights...

Features

  • IO-Link 1.1
  • Very high switching frequency
  • Test input for high operational reliability
  • Range: 10,000 mm
  • Smallest Recognizable Part: see table 1
  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Sensor Type: Receiver
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 4,500 Hz
  • Switching Frequency (interference-free mode): 2,000 Hz
  • Response Time: 0.11 ms
  • Response time (interference-free mode): 0.25 ms
  • Temperature Drift (14°F < Tu < 104°F): 10 % *
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

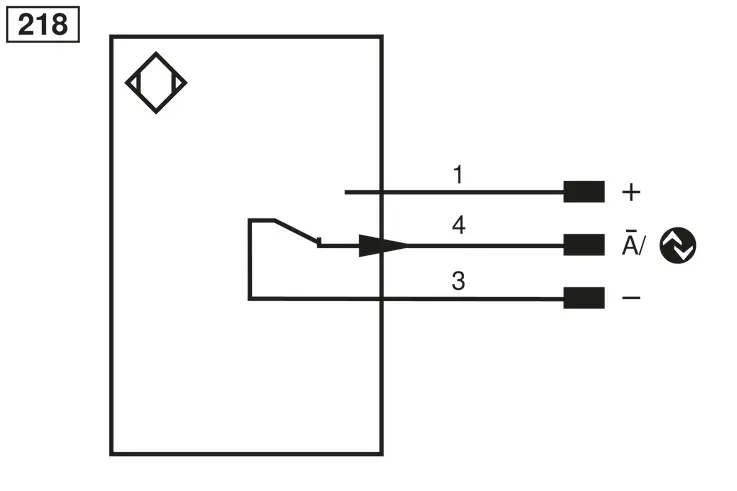

  • Connection: M8 × 1; 3-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 6 g
  • MTTFd (EN ISO 13849-1): 1,945.13 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NC: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point
  • Distance transmitter/receiver: 1 m, 6 m, 10 m
  • Smallest Recognizable Part: 2,5 mm, 1 mm, 1,5 mm
  • Complementary Products: IO-Link Master, Software
The through-beam sensor works with a fine laser beam as well as a transmitter and a receiver. The collimated laser beam of laser class 1 detects objects, for instance, when conducting installation, feed or presence controls, starting at a size of just 1.0 millimeters. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
